Sealing system LB series

Overview

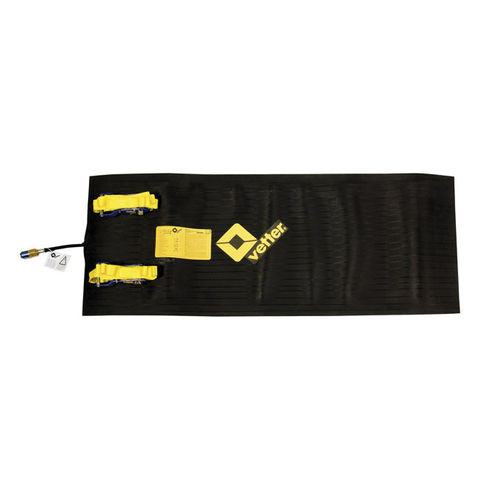

Rapidly seal sudden leaks on pipelines with the Vetter leak sealing bandage. Designed for emergency response and straightforward one-person use: wrap the bandage around the leak, tension the straps and inflate the cushion.

Product number
1500013900

Technical specifications

• Product number: 1500013900
• Compatible pipe diameter: 50–480 mm
• Length: 980 mm
• Width: 210 mm
• Sealing surface (max): 380 mm
• Weight: 2.3 kg
• Air requirement at working pressure: 22.5 l
• Sealing pressure: 14 m WS (≈1.4 bar)
• Operating pressure: 1.5 bar / 21.76 psi
• Test pressure: 1.95 bar / 28.28 psi
• Straps mounted directly on the cushion for fast application
