Sealing inflatable bag LD series

Description

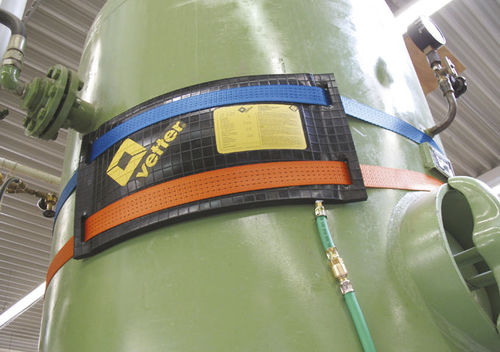

Reliable sealing and controlled drainage of hazardous liquids when normal outlets are inaccessible or pumping is not possible. The DLD50/30 leak drainage bag is tensioned with belts for secure mounting on a variety of surfaces and is inflated quickly with a foot pump; only a few strokes are required to form an effective seal.

Applications

• Sealing and draining leaks from tanks, pipes and drums
• High discharge outlets on tanks and tank wagons
• Containment during pump failure or when normal outlets are not usable
• Covering large surfaces, cracks and seams for controlled drainage

Key features

• Belt-tensioned design for adaptable mounting on uneven surfaces
• Even pressure distribution reduces the risk of enlarging the leak
• Supplied with a robust acid-protection cover with preformed belt slots and an integrated strap pocket
• Includes sealing plates for use on sharp-edged leaks to extend service life

Technical specifications

• Product number: 1500005902
• Length: 620 mm
• Width: 300 mm
• Height: 60 mm
• Weight: 8.2 kg
• Air requirement at working pressure: 2.8 l
• Sealing pressure: 10 m WS
• Test pressure: 1.95 bar / 28.28 psi
• Operating pressure: 1.5 bar / 21.76 psi
• Sealing surface: 50 x 30 cm / 19.69 x 11.81 inch
