Sealing system 15000 series

Quick solution for sealing leaks on site.

Function and use

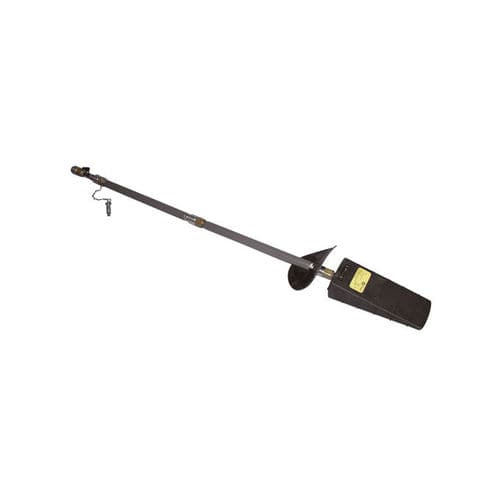

The Vetter leak sealing lance is designed for rapid, single-operator temporary sealing of small leaks in storage tanks, tank trucks and wagons. Using wedge and cone bags fitted at the lance tip, the device reduces volume flow at cracks (15–60 mm) and holes (30–90 mm), allowing intervention from a safe distance and buying time for further measures. Anti-slip profiles on the bags improve grip during deployment.

Notes

• Working pressure: 1.5 bar (21.76 psi)
• Test pressure: 1.95 bar (28.28 psi)
• Material: optionally made of chloroprene rubber

Sizes and performance (overview):
Wedge bag 6 — 23 x 6 x 5 cm / 9 x 2.4 x 2 in — 1.5 l / 0.05 cu. ft. — 0.2 kg / 0.4 lbs — Leak opening size 1.5 - 4.5 cm / 0.59 - 1.77 in — Width 6 - 9 cm / 2.36 - 3.54 in
Wedge bag 8 — 23 x 8 x 5.5 cm / 9 x 3.15 x 2.2 in — 3.5 l / 0.12 cu. ft. — 0.3 kg / 0.7 lbs — Leak opening size 1.5 - 4.5 cm / 0.59 - 1.77 in — Width 8 - 12 cm / 3.15 - 4.72 in
Wedge bag 11 — 23 x 11 x 7 cm / 9 x 4.3 x 2.8 in — 7.8 l / 0.28 cu. ft. — 0.4 kg / 0.9 lbs — Leak opening size 3 - 6 cm / 1.18 - 2.36 in — Width 11 - 17 cm / 4.33 - 6.69 in
Cone bag 7 — 23 x Ø 7 cm / 9 x Ø 2.8 in — 3 l / 0.11 cu. ft. — 0.2 kg / 0.4 lbs — Leak opening size 3 - 9 cm / 1.18 - 3.54 in — -

Technical specifications

• Product number: 1500009600
• Commercial name: Leak sealing lance
• Weight: 8.1 kg
• Operating pressure: 1.5 bar / 21.76 psi
• Test pressure: 1.95 bar / 28.28 psi
• Leak reduction capability: cracks 15–60 mm (0.6–2.3 in); holes 30–90 mm (1.2–3.5 in)
