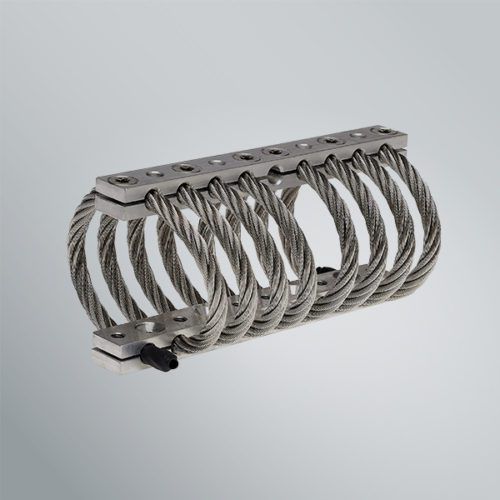

ledge anti-vibration mount / steel / stainless steel / electronic equipment
CAVOFLEX series

{{requestButtons}}

Characteristics

  • Configuration:

    ledge

  • Material:

    steel, stainless steel

  • Applications:

    electronic equipment, for marine applications, for railway applications, for aeronautical applications, for mobile devices

  • Other characteristics:

    vibration damper, wire rope isolator

  • Static load:

    Min.: 0.5 daN

    Max.: 2,000 daN

Description

Originally designed for the defense sector the CAVOFLEX range of wire ropes have been used in various industrial applications and transport vehicles over the years. Secure fixing and long lasting performance in the most difficult conditions are the two most important requirements.

CAVOFLEX is used to isolate vibrations - whether they are created or received by suspended equipment or as shock absorbing mounts due to its high damping capacity and deflection capacity.

The range of the stainless steel wires are from 1.5mm to 32 mm in dia with helicoidal winding. There are different models designed for different loads in the range of 0.5 kg to 2000 kg.
