Ball valve 340 seriesmanualshut-offthreaded
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- shut-off
- Body
- threaded, brass
- DN
Max.: 4 in
Min.: 0.25 in
- Pressure
25 bar, 40 bar
(362.6 psi, 580.2 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -10 °C
(14 °F)
Description

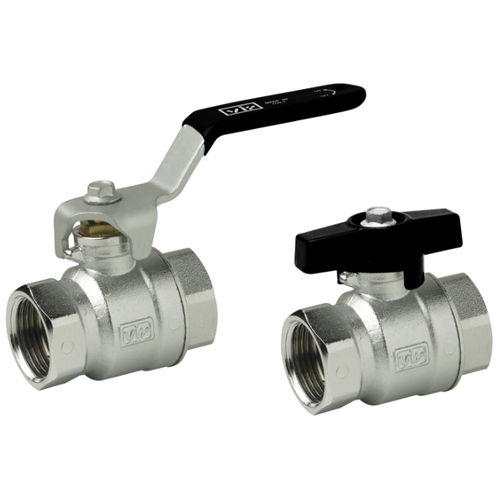

Full bore brass ball valve
Diameters from DN008 - ¼" to DN100 - 4"
Threaded F/F (ISO 228/1)
Design according to MSS-SP-110
Air testing according to EN12266-1
Blow-out proof stem, adjustable packing
With handle or butterfly (up to DN≤50)
ACS, VA and TR CU 010 compliant
PN40 for DN≤50 (Max 40bar up to 95°C, max 25bar at 150°C)
PN25 for DN≥65 (Max 25bar up to 95°C, max 16bar at 150°C)
Free of CE marking for DN≤32 (cat. according to Art. 4.3 Dir. 2014/68/EU)
● Suitable for: water, 0°C to +150°C
● Suitable for: air, -10°C to +150°C
● Not suitable for: gases and liquids group 1 (Dir. 2014/68/UE
