Globe valve 9555P seriesmanualregulatingthreaded
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- manual
- Function
- regulating
- Body
- threaded, double, cast iron, cast, cast iron, acrylic
- Applications
- for industrial applications
- Associated function
- balancing
- Other characteristics
- ISO
- DN
Min.: 40 mm
(1.575 in)Max.: 400 mm
(15.748 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 110 °C
(230 °F)
Description

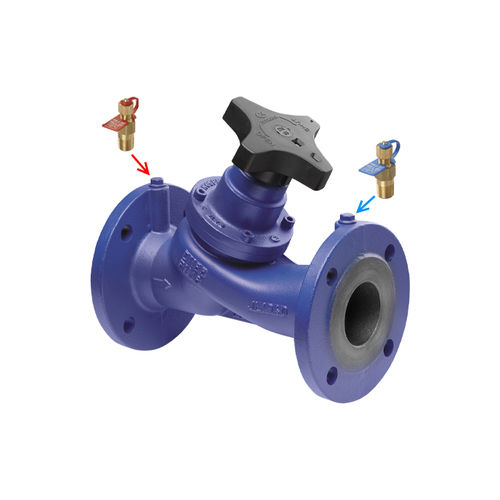

Cast iron variable orifice static balancing valve (Fig. 9555P), provided with test points (Fig. 95TP, unmounted)
Additional information
Material -
Cast Iron
Typology -
Static balancing
Connection -
Flanged
Variable orifice cast iron double regulating valve
Flanged PN16 according to EN1092-2 (ex DIN2533)
Lengths according to EN558-1 series 1 (ex DIN3202 F1)
Alkyd/acrylic single layer waterpaint coating (50-100μm)
Tolerance on nominal Kv for completely open valve ±5%
With plugged threaded drains (¼” ISO 7/1Rp) for test points
Provided with test points (given unmounted)
TR CU 010 compliant
PN16
Working conditions
(ethylene glycol or propylene glycol mixtures up to 50% may be used)
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
