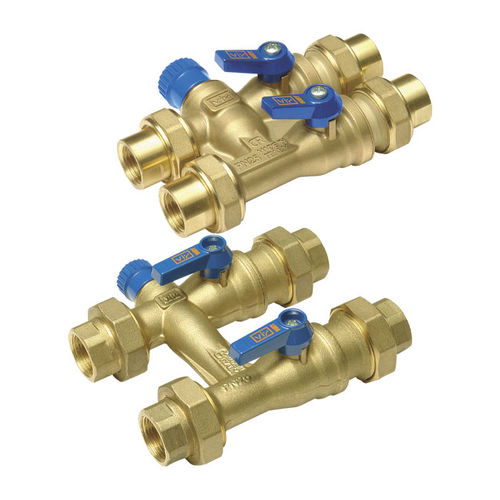

Ball valve 90BY series

manualfor controlthreaded

Valve for HVAC terminal units mounting (Fig. 90BY), versions with center to center 80mm and 40mm Additional information Material - DZR Brass Typology - Ball valve Connection - ISO 228/1, ISO 7/1 Valve for HVAC terminal units mounting (fan coils, heat exchangers and so on) Diameters from DN015 – ½” to DN025 – 1″ Threaded F/F/F/F (ISO 228/1) union ends Version with only two union ends also available Olive and nut mounting kit for European copper tubing (EN1057) on request: ● DN15, kit for 15mm pipe ● DN20, kit for 22mm pipe Other connections (CxC, threaded M, ISO 7/1 Rp) or combinations on request Air testing according to EN12266-1 Available in 40mm or 80mm center to center version One piece body with integral by-pass channel Blow-out proof stems TR CU 010 compliant Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU) Working conditions ● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
