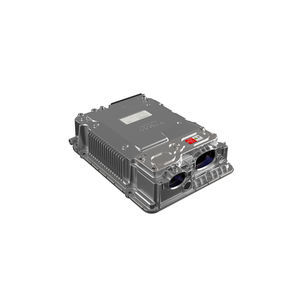

Surface mounted junction box

aluminumcopperDC

Junction box for (dis-)connection of up to two battery cell stacks to the vehicle high voltage powertrain and auxiliary / charging devices as well as overcurrent detection and interruption. FACTS & BENEFITS Localized HV interfaces and ease of serviceability Aluminum and copper bus bar design possible Different contactor and switch off components Easily customizable to various battery designs Interfaces: DC charging, auxiliaries Integration of electronics (BMS / DC/DC) possible TECHNICAL INFORMATION Voltage: 450 V or 800 V Max. current capability of +/- 750 A Charging Power: Up to 350 kW Overcurrent switch-off capability of up to 2000 A with contactors or up to 25kA with conventional or pyrotechnical fuses
