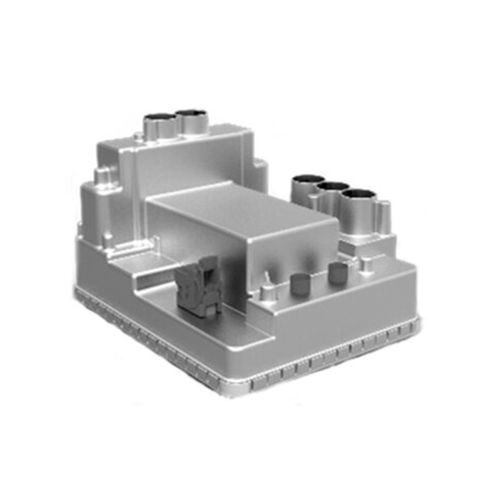

Power inverter EPF4
stand-alonehigh-voltagefor automobiles

power inverter
power inverter
Add to favorites
Compare this product


Characteristics

Electrical characteristics
power, stand-alone, high-voltage
Applications
for automobiles
Other characteristics
modular
Voltage

470 V

Primary current

Max.: 825 A

Min.: 290 A

Description

The High Voltage (HV) inverter is the component for electrified vehicles which controls the e-machine. It manages both the motor and the generator mode. The EPF4 is an inverter platform which can be used stand-alone or integrated. In addition the product consists of a modular software platform, control architecture and a wide range powerstage. It reaches highest efficiency with SI technology. However a SiC powerstage is available on request. Vitesco Technologies' HV inverter can be used for plug-in hybrid vehicles (PHEV) as well as for battery electric vehicles (BEV). FACTS & BENEFITS Improved power density Vitesco Technologies software platform Motor and generator mode Pos. sensor: resolver, Vogt sensor TECHNICAL INFORMATION Inverter performance: up to 470 V / 290 - 825 A peak AUTOSAR compliant software architecture Protection class for stand alone IP6k9k Dimensions (LxHxW) (mm): 270 x 126 x 221 Functional safety level: ASIL D Si power stage, SiC available optional
