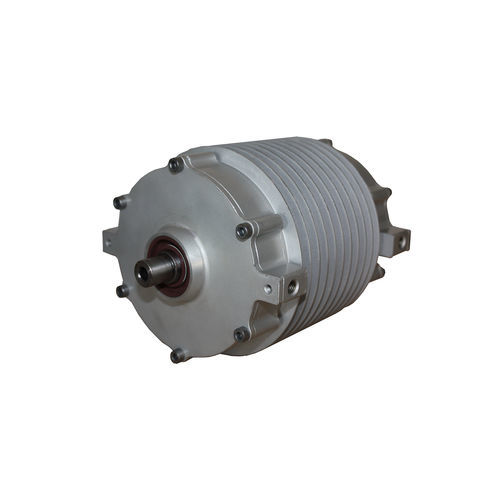

Electric vehicle motor synchronousDC48 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, DC
- Voltage
- 48 V
- Configuration
- permanent magnet, compact
- Protection class
- IP67
- Applications
- traction, for electric vehicles
- Power
Min.: 3.5 kW
(4.76 hp)Max.: 7 kW
(9.52 hp)- Torque
Min.: 22 Nm
(16.226367 ft.lb)Max.: 27 Nm
(19.914178 ft.lb)- Rotational speed
Min.: 7,500 rpm
(47,123.8898 rad.min-1)Max.: 8,500 rpm
(53,407.0751 rad.min-1)
Description
Compact electric machine for small to medium sized electric and hybrid 2/3 wheelers.
FACTS & BENEFITS
Very high power density permanent magnet motor
Designed to optimize magnet quantity vs performance
Low cogging torque
Maintenance free
