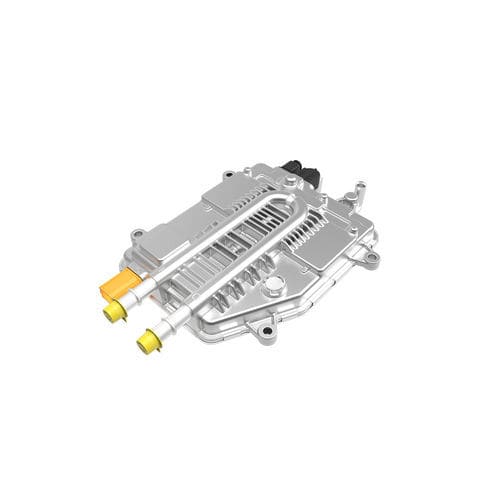

High-voltage DC/DC converter

metal packagevehicle12 V

The high voltage DC/DC converter ensures the energy flow between the high voltage and the 12 V vehicle electrical system in a hybrid or electric vehicle. As many of the electrical components in a vehicle require a 12V connection, Vitesco Technologies DC/DC converter transforms the power to high voltage and vice versa. It enables a scalable power variation and a high modularity in packaging. FACTS & BENEFITS Increased output power (peak/cont.) / High power density Customizable for input voltages of 400-800 V and output voltages of 12-48 V EMC legal requirements / AUTOSAR compliant software architecture Stand alone or Integrated TECHNICAL INFORMATION DC/DC power scalable up to 3.5 kW Output current two phase: 240 A at 14.5 V cont. Output peak current two phase: 280 A for 10 sec. at 14.5 V cont.​ Nominal operating voltage range HV: 220 V - 450 V Nominal operating voltage range LV: 8 V -16 V​ Safety level: ASIL B(D) Size (LxWxH): 250x200x50 mm Weight: 2.6 kg
