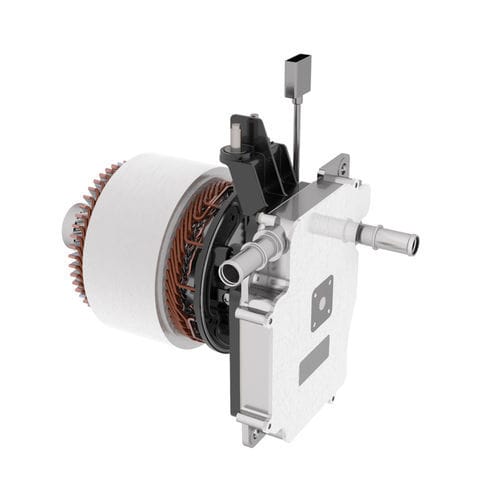

Universal motor DC48 Vcompact
Add to favorites
Compare this product
Characteristics
- Type
- universal, DC
- Voltage
- 48 V
- Configuration
- compact
- Applications
- vehicle
- Power
18 kW
(24.47 hp)- Torque
55 Nm
(40.565918 ft.lb)- Operating temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
The 48 V transmission-integrated eDrive consists of an integrated motor and transmission-attached power electronics. The system is characterized by its very high power density. It enables pure electric launch, advanced boosting and torque assistance in addition to conventional BSG (Belt Starter Generator) functionalities. The system has been developed for high volume production.
FACTS & BENEFITS
Compact inverter design, high power density
Allows advanced CO₂ benefits, significant traction assistance and pure electric driving
No service required / IP2X compliant
TECHNICAL INFORMATION
Peak torque: 55 Nm
Peak power: 18 kW in generator mode
Weight: ≤ 10 kg
Ambient temperature: -40 °C up to +120 °C
Dim (w/o inverter, w/o pulley): L: 165mm / Diam: 150mm
Protection class: IP6k9k
