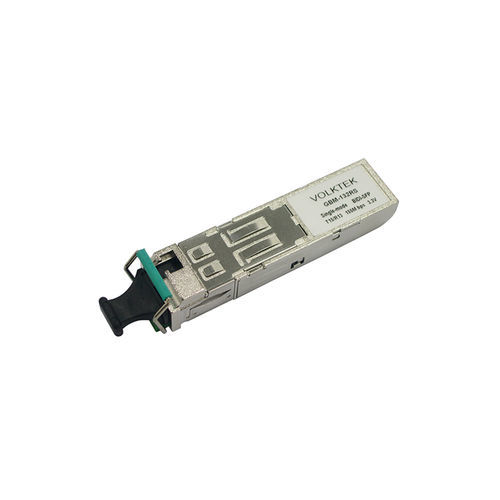

Ethernet transceiver GBM-132RS

for fiber opticsfor fiber opticsdata transmission

Product Highlights: - 100Base-FX, Single-mode SFP Transceiver Module - Long transmission distance - Wavelength: TX: 1550 / RX: 1310 - Single-mode Transceiver Small Form Pluggable (SFP) 3.3V - Operating temperature 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) Overview: GBM-132RS is a small form pluggable 100 Base-FX Single-mode Simplex LC, 3.3V SFP transceiver module available at different transmission lengths of 20/40/60km. The wavelength is TX: 1550 / RX: 1310. It has an operating temperature of 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) depending on request. Features: - RoHS (Restriction of Hazardous Substances) compliant - Compliant with SONET/SDH (Synchronous Optical Network / Synchronous Digital Hierarchy) standard - Compliant with Fast Ethernet standard - Compliant with EEE802.3ah 100Base-BX - Compliant with ITU-T (International Telecommunications Union - Telecommunication Standardization Sector) G.985 class S - Industry standard small form pluggable (SFP) package - Simplex LC (Lucent Connector) - Differential LVPECL (Low-Voltage Positive Emitter-Coupled Logic) inputs and outputs - Single 3.3V power supply - TTL (Transistor–Transistor Logic) signal detection indicator - Hot pluggable - Class 1 laser product Technical Specifications: - Product type: 100Base-FX, Single-mode SFP Transceiver Module - Transmission distance: 20Km - Wavelength: TX: 1550nm / RX: 1310nm - Connector: Simplex LC - Operating temperature: 0°C~70°C / -40°C~85°C (model dependent) - Voltage: 3.3V - TX Power: -8dBm ~ -14dBm - RX Sensitivity: < -32dBm - Compliance: RoHS, SONET/SDH, Fast Ethernet, IEEE802.3ah 100Base-BX, ITU-T G.985 class S - Hot pluggable, Class 1 laser product
