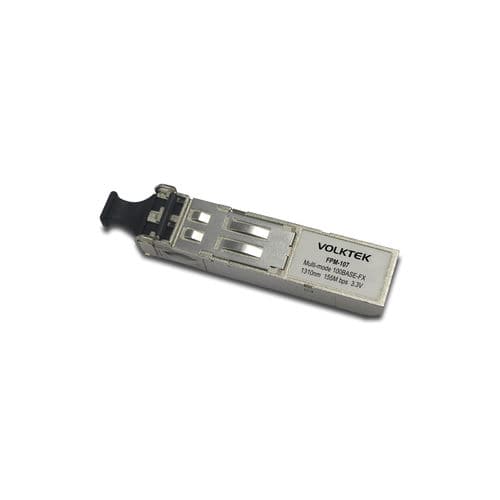

Ethernet transceiver FPM-107 series

single-modeSFPbackplane

Product Highlights - 100Base-FX SFP Transceiver Module - 2km~100km transmission distance (available on request) - 1310nm/1550nm Wavelength - Single-mode and Multi-mode Transceiver Small Form Pluggable (SFP), 3.3V - Operating Temperature 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) Overview FPM-107 is a 10 Base-FX SFP transceiver module available in single- and multi-mode and at different transmission lengths ranging from 2km to 100km. It has an operating temperature of 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) depending on request. Features - RoHS (Restriction of Hazardous Substances) compliant - Compliant with Fast Ethernet standard - Industry standard small form pluggable (SFP) package - Duplex LC (Lucent Connector) - Differential LVPECL (Low-Voltage Positive Emitter-Coupled Logic) inputs and outputs - Single 3.3V power supply - TTL (Transistor–transistor logic) signal detection indicator - Hot pluggable - Class 1 laser product Specifications Model Name: FPM-107 Fiber Mode: Multi-mode Distance: 2Km Wavelength: 1310nm TX Power: -14dBm ~ -20dBm RX Sens: < -31dBm Voltage: 3.3V Connector Type: Duplex LC Operating Temp.: 0°C~70°C / 32°F~158°F Ordering Information - FPM-107: 100BASE-FX, Multi-mode SFP, 2Km, 0°C~70°C / 32°F~158°F - FPM-107I: 100BASE-FX, Multi-mode SFP, 2Km, with wide temperature -40°C~85°C / -40°F~185°F - FPM-107-30: 100BASE-FX, Single-mode SFP, 30Km, 0°C~70°C / 32°F~158°F - FPM-107I-30: 100BASE-FX, Single-mode SFP, 30Km, with wide temperature -40°C~85°C / -40°F~185°F - FPM-107-60: 100BASE-FX, Single-mode SFP, 60Km, 0°C~70°C / 32°F~158°F - FPM-107I-60: 100BASE-FX, Single-mode SFP, 60Km, with wide temperature -40°C~85°C / -40°F~185°F - FPM-107-100: 100BASE-FX, Single-mode SFP, 100Km, 0°C~70°C / 32°F~158°F - FPM-107I-100: 100BASE-FX, Single-mode SFP, 100Km, with wide temperature -40°C~85°C / -40°F~185°F Technical Specifications / Features - Transmission distance: 2km to 100km (on request) - Wavelength: 1310nm/1550nm - Fiber type: Single-mode and Multi-mode - Connector: Duplex LC - Operating temperature: 0°C~70°C or -40°C~85°C - Power supply: 3.3V - RoHS, CE, FC compliant - Class 1 laser product - Hot pluggable - Compliant with Fast Ethernet standard
