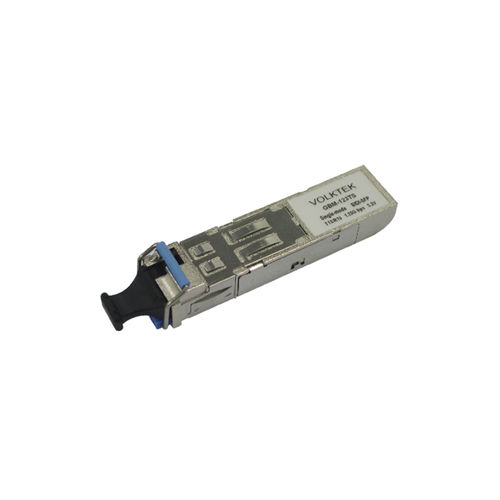

Fiber optic transceiver GBM-123TS

gigabit Ethernetbidirectionalsingle-mode

Product Highlights - Gigabit Single-mode SFP Transceiver Module - 10km transmission distance - Wavelength TX: 1310 / RX: 1550 - Single-mode Bi-directional SFP LC Simplex Connector - Operating temperature 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) Overview GBM-123TS is a 1.25 Gigabit Single-mode bi-directional, 3.3V, Simplex connector SFP module with 10km transmission length at wavelength TX: 1310 / RX: 1550. It has an operating temperature of 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) depending on request. Features - Compliant with Fiber Channel 100-SM-LC-L standard - Compliant with IEEE802.3z Gigabit Ethernet standard - Industry standard small form pluggable (SFP) package - Simplex LC (Lucent Connector) - Differential LVPECL (Low-Voltage Positive Emitter-Coupled Logic) inputs and outputs - Single 3.3V power supply - TTL (Transistor–Transistor Logic) signal detect indicator - Hot pluggable - Class 1 laser product Specifications Model Name: GBM-123TS Distance: 10Km Wavelength: TX: 1310 / RX: 1550 TX Power: -3dBm ~ -9dBm RX Sens: < -21dBm Voltage: 3.3V Connector Type: Simplex LC Operating Temp.: 0°C~70°C / 32°F~158°F Ordering Information Model: GBM-123TS Description: 1000Base-LX, Bi-Di SFP TX: 1310 / RX: 1550 Single Mode, 10Km, 0°C~70°C / -32°F~158°F Technical Specifications / Features - Model: GBM-123TS - Type: Gigabit Single-mode Bi-directional SFP Transceiver Module - Transmission Distance: 10km - Wavelength: TX: 1310nm / RX: 1550nm - Connector: Simplex LC - Operating Temperature: 0°C~70°C (standard), -40°C~85°C (industrial) - Power Supply: 3.3V - Compliant Standards: Fiber Channel 100-SM-LC-L, IEEE802.3z - Hot pluggable, Class 1 laser product
