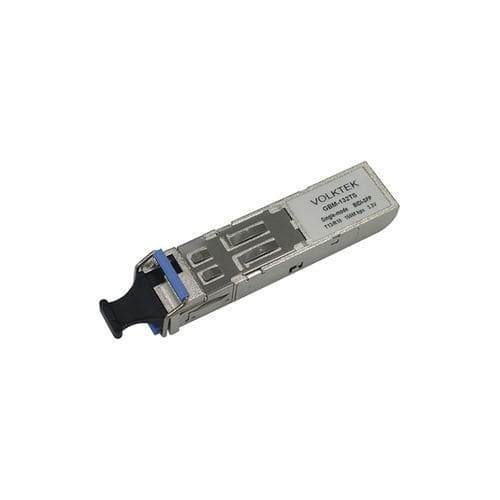

Ethernet transceiver GBM-132TS

for fiber opticsSFPsingle-mode

Product Highlights - 100Base-FX, Single-mode SFP Transceiver Module - Long transmission distance - Wavelength TX: 1310 / RX: 1550 - Single-mode Transceiver Small Form Pluggable (SFP), 3.3V - Operating temperature 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) Overview GBM-132TS is a small form pluggable 100 Base-FX Single-mode Simplex LC, 3.3V SFP transceiver module available at different transmission lengths of 20/40/60km. It has a wavelength of TX: 1310 / RX: 1550. It has an operating temperature of 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) depending on request. Features - RoHS (Restriction of Hazardous Substances) compliant - Compliant with SONET/SDH (Synchronous Optical Network / Synchronous Digital Hierarchy) standard - Compliant with Fast Ethernet standard - Compliant with EEE802.3ah 100Base-BX - Compliant with ITU-T (International Telecommunications Union - Telecommunication Standardization Sector) G.985 class S - Industry-standard small form pluggable (SFP) package - Simplex LC (Lucent Connector) - Differential LVPECL (Low-Voltage Positive Emitter-Coupled Logic) inputs and outputs - Single 3.3V power supply - TTL (Transistor–Transistor Logic) signal detection indicator - Hot-pluggable - Class 1 laser product Specifications Model Name: GBM-132TS Distance: 20Km Wavelength: TX: 1310 / RX: 1550 TX Power: -8dBm ~ -14dBm RX Sens: < -32dBm Voltage: 3.3V Connector Type: Simplex LC Operating Temp.: 0°C~70°C / 32°F~158°F Ordering Information Model: GBM-132TS Description: 100Base-FX, Bi-Di SFP TX: 1310 / RX: 1550 Single Mode, 20Km, 0°C~70°C / -32°F~158°F Specifications subject to change without prior notice.
