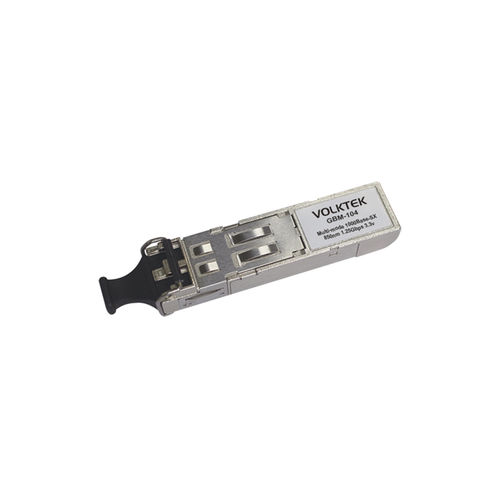

Gigabit Ethernet transceiver GBM-104 series

for fiber opticscompactSFP

Product Highlights - 1.25 Gigabit SFP Transceiver Module - 550m/10km/20km transmission distance - Wavelength: 850nm/1310nm/1310nm - Multi-mode/Single-mode Duplex Transceiver Small Form Pluggable (SFP) 3.3V - Operating temperature 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) Overview GBM-104 is a 1.25 Gigabit Duplex LC, 3.3V small form pluggable transceiver module available in single- and multi-mode and at different transmission lengths of 550m/10km/20km. Depending on specifications; wavelength of 850nm/1310nm/1310nm. It has an operating temperature of 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) depending on request. Features - Compliant with Fiber Channel 100-M5-SN-I and 100-M6-SN-I standards - Compliant with IEEE802.3z Gigabit Ethernet standard - Industry standard small form pluggable (SFP) package - Duplex LC (Lucent Connector) - Differential LVPECL (Low-Voltage Positive Emitter-Coupled Logic) inputs and outputs - Single 3.3V power supply - TTL (Transistor–Transistor Logic) signal detect indicator - Hot pluggable - Class 1 laser product Specifications Model Name: GBM-104 Distance: 550M Wavelength: 850nm TX Power: -4dBm ~ -9.5dBm RX Sens: < -18dBm Voltage: 3.3V Connector Type: Duplex LC Operating Temp.: 0°C~70°C / 32°F~158°F Ordering Information Model: GBM-104 Description: 1000BASE-SX 1.25G, Multi-mode SFP, 550m, 0°C~70°C / 32°F~158°F
