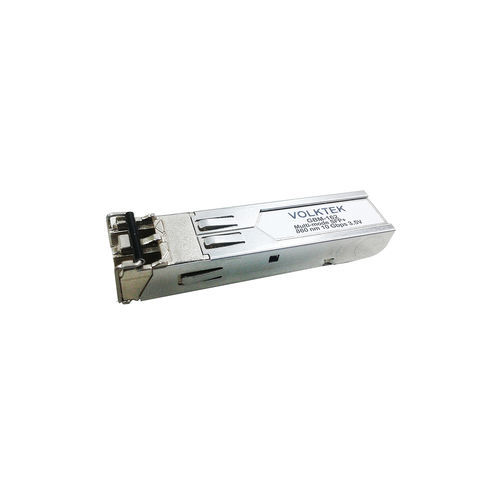

Gigabit Ethernet transceiver GBM-162 series

high-performancelow-consumptionprogrammable

Product Highlights - 10G SFP+ Transceiver Module - 2-wire interface for management diagnostic monitor - 300m/10km/40km/80km transmission distance - Wavelength 850nm/1310nm/1550nm - Multi-Mode SFP+ Duplex LC Connector - Operating temperature 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) Overview GBM-162 is a 10 Gigabit SFP+-ER multi-mode Duplex LC connector transceiver module available at different transmission lengths of 300m/10km/40km/80km. It offers a 2-wire interface for management diagnostic monitor. Depending on specifications; wavelength of 850nm/1310nm/1550nm. It has an operating temperature of 0°C~70°C (-32°F~158°F) / -40°C~85°C (-40°F~185°F) depending on request. Features - Compliant with IEEE 802.3ae 10GBase-ER Ethernet Standard - Compliant with SFF8472 diagnostic monitoring interface - Compliant with SFP+ MSA Hot Pluggable - 1550nm EML or 1310nm DFB laser transmitter - Duplex LC connector - 2-wire interface for management diagnostic monitor - Single +3.3V power supply voltages - Transmission distance of 300m, 10km or 40km over single mode fiber - RoHS Compliant Part Specifications Model Name: GBM-162 Distance: 300m Data Rate: 10G Wavelength: 850nm TX Power: -4.3dBm ~ -2.8dBm RX Sens: -11.1dBm (Max) Voltage: 3.3V Connector Type: Duplex LC Operating Temp.: 0°C~70°C / 32°F~158°F Ordering Information Model: GBM-162, GBM-162-10, GBM-162-40, GBM-162-80 Transmission distance: 300m, 10km, 40km, 80km Data rate: 10G Wavelength: 850nm, 1310nm, 1550nm Connector: Duplex LC Operating temperature: 0°C~70°C / 32°F~158°F Voltage: 3.3V Compliant with IEEE 802.3ae, SFF8472, SFP+ MSA RoHS compliant
