Cartridge filter housing FP series
for fluidsplastic

cartridge filter housing
cartridge filter housing
Add to favorites
Compare this product


Characteristics

Filter type
cartridge
Fluid
for fluids
Material
plastic
Operating pressure

Max.: 9,000 mbar (130.534 psi)

Min.: 0.5 mbar (0.007 psi)

Flow rate

Max.: 100 m³/h (3,531.467 ft³/h)

Min.: 70 m³/h (2,472.027 ft³/h)

Description

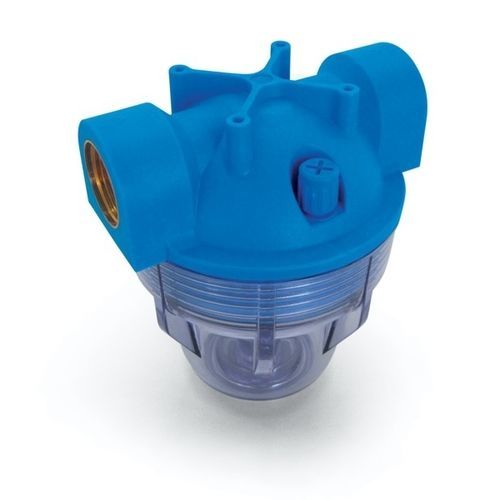

Comprised of a transparent plastic container and a blue plastic head which are screwed together with an interposed seal, the FP series containers are ideal for filtering cartridges with compression sealing. The length in inches of the filtering cartridge is indicated by the number after the article. The cartridge is available in numerous materials including stainless steel mesh AISI 304, pleated paper and pleated polypropylene mesh. They operate at a working pressure of 0.5 to 9,000 mbar abs. The temperature of the sucked fluid ranges from -10 to 45 °C. Two models of the FP series are available with diameters of 130 mm and 4" cartridge lengths. FP 25/4 weighs 0.84 kg, has a maximum capacity of 70 cum/h and G3/4" diameter. FP 30/4 weighs 0.91 kg, has maximum capacity of 100 cum/h and G1" diameter.
