Air filter F series
particulatedustcartridge

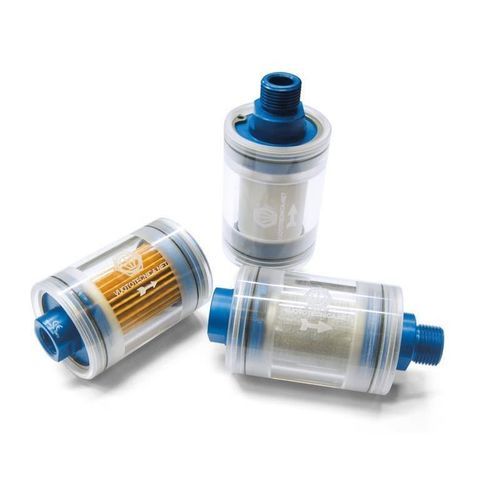

Air filter - F series - VUOTOTECNICA - particulate / dust / cartridge
Air filter - F series - VUOTOTECNICA - particulate / dust / cartridge
Add to favorites
Compare this product
Go to the VUOTOTECNICA website for more information

Characteristics

Designed for
air, dust, particulate
Filtration element
cartridge
Filtration method
vacuum
Applications
suction
Material
aluminium, paper, Plexiglas®
Mounting
threaded, flange, thread connection
Other characteristics
cylindrical, transparent, absolute, in-line
Operating pressure

Max.: 300,000 Pa
(43.511 psi)

Min.: 50 Pa
(0.007 psi)

Fluid temperature

Max.: 60 °C
(140 °F)

Min.: -20 °C
(-4 °F)

Description

Overview
  • Small in-line vacuum filters that retain impurities and fine dust with negligible impact on flow rate.
  • Compact size allows direct installation on vacuum piping close to end-uses (vacuum cups, vacuum clamping systems) for localized/fractionated filtration and improved visual monitoring of suction points.


Construction
  • Cylindrical transparent Plexiglass body closed by two anodised aluminium flanges retained with Seeger rings.
  • Threaded male or female connections and sealing gaskets located in the flanges.
  • Replaceable paper filter cartridge housed inside.


Maintenance and limitations
  • Inspection and cartridge replacement by removing one flange for quick access.
  • Paper filter element is not suitable for use with water or oil vapours or where condensation may occur; avoid such environments for FCL models.


Product codes
  • FPL1 FCL1 FIL1 FPL2 FCL2 FIL2 FPL3 FCL3 FIL3 FPL1M FCL1M FIL1M FPL2M FCL2M FIL2M FPL3M FCL3M FIL3M FPL1MF FCL1MF FIL1MF FPL2MF FCL2MF FIL2MF FPL3MF FCL3MF FIL3MF


Technical specifications
  • Operating pressure: 0.5 to 3000 mbar (absolute)
  • Fluid temperature: -20 to +60 °C
  • Body material: transparent Plexiglass (cylindrical)
  • End fittings: anodised aluminium flanges secured by Seeger rings
  • Connections: threaded male or female in flanges
  • Filter element: paper cartridge (see limitations above)
