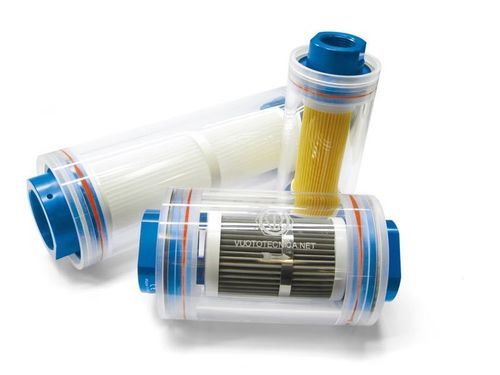

Cartridge filter housing FCL7

pleatedfor airaluminum

Overview
These in-line suction filters retain impurities and very fine dust while affecting flow rate negligibly. Their compact cylindrical design allows direct installation on vacuum lines close to tools (suction cups, vacuum clamping systems, etc.) to provide local filtration and visual control of suction points.

Construction
Transparent Plexiglass cylindrical body closed by two anodised aluminium flanges retained by Seeger rings. Threaded male or female connections and sealing elements are located in the flanges; an internal removable filtering cartridge increases filtration surface. Filters can be inspected by removing one flange.

Filter cartridge types

• Series SP: Pleated paper cartridge with compression sealing.
• Series SS: Pleated polypropylene mesh cartridge with compression sealing.
• Series SA: AISI 304 stainless steel mesh cartridge with compression sealing.
• Series RP: Pleated paper quick-coupling cartridge with double O-ring.
• Series RS: Pleated polypropylene mesh quick-coupling cartridge with double O-ring.
• Series RA: AISI 304 stainless steel mesh quick-coupling cartridge with double O-ring.

Usage notes
Paper-element versions are not recommended for environments with water or oil vapours or condensation. Choose mesh or stainless steel cartridges where moisture or oils are present.

Maintenance / inspection
Inspection and cartridge replacement are performed by removing one flange; no special tools are required for basic inspection.

Product codes (examples)
FPL1 FCL1 FIL1 FPL2 FCL2 FIL2 FPL3 FCL3 FIL3 FPL4 FCL4 FIL4 FPL5 FCL5 FIL5 FPL6 FCL6 FIL6 FPL7 FCL7 FIL7 SP/5M SS/5M SA/5M RP/5 RS/5 RA/5 RP/10/57 RS/10/57 RA/10/57

Technical features

• Operating pressure: 0.5 to 3000 mbar absolute
• Fluid temperature: -20 to +60 °C
• Body: transparent Plexiglass cylinder
• Flanges: anodised aluminium secured by Seeger rings
• Cartridge materials: pleated paper, polypropylene mesh, AISI 304 stainless steel mesh
• Sealing types: compression sealing or quick-coupling with double O-ring depending on series
• Not recommended with water/oil vapours when equipped with paper elements
• Inspection: removable flange for visual check and cartridge access
