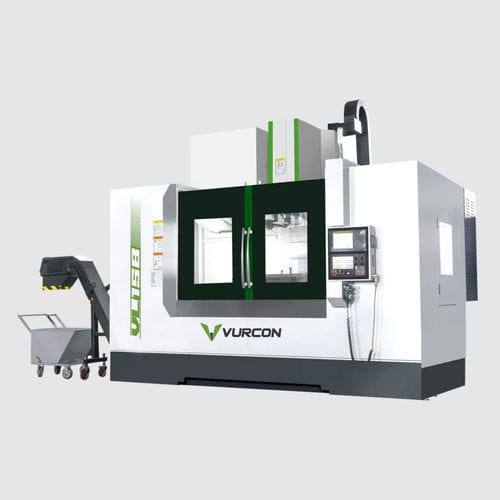

3-axis CNC machining center VL-158verticalBT 40BT 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, BT 50, BBT40
- Number of tool stations
- 24 tools
- X travel
1,500 mm
(59.06 in)- Y travel
850 mm
(33.46 in)- Z travel
850 mm
(33.46 in)- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 20 rpm
(126 rad.min-1)- Power
18.5 kW
(25.15 hp)- Work feed X-axis
24 mm/min
(0.02 in/s)- Work feed Y-axis
24 mm/min
(0.02 in/s)- Work feed Z-axis
24 mm/min
(0.02 in/s)- Tool weight (max)
15 kg
(33.1 lb)- Positioning accuracy
0.01 mm
(0.00039 in)- Repeatability
0.005 mm
(0.0002 in)- Weight
15,800 kg
(34,833.04 lb)- Overall length
4,100 mm
(161.4 in)- Overall width
1,400 mm
(55.1 in)
Description
Fanuc 0iMF Plus Control (Type 2)
15” Touch Screen
Fanuc Manual Guide i
Electronic Handwheel
Air conditioning in the electrical cabinet
10,000 rpm transmission type: belts
Head power 11/15Kw, Torque 191 Nm
Spindle type: BT40 (BBT40) Oil-cooled head
24-position tool changer
Automatic lubrication system
Chain-type chip conveyor (+ helical spindle)Coolant through the tool 20 bar
Oil/coolant separator
Air cleaning gun
Coolant cleaning gun
