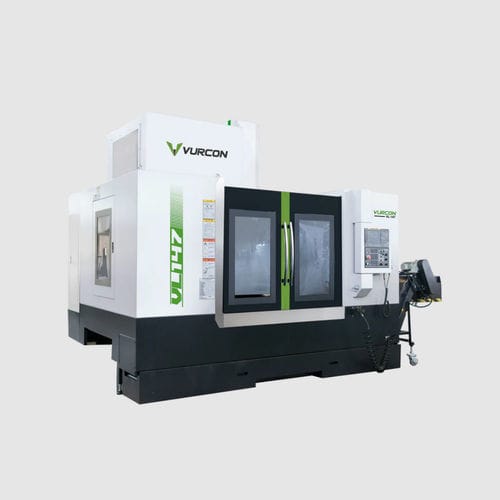

3-axis CNC machining center VL-147 verticalrigidCE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- rigid, CE
- X travel
1,400 mm
(55.12 in)- Y travel
700 mm
(27.56 in)- Z travel
700 mm
(27.56 in)- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 20 rpm
(126 rad.min-1)- Power
18.5 kW
(25.15 hp)- Work feed X-axis
24 m/min
- Work feed Y-axis
24 m/min
- Work feed Z-axis
20 m/min
- Table load capacity
1,100 kg
(2,425 lb)- Tool weight (max)
15 kg
(33.1 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.005 mm
(0.0002 in)- Weight
11,000 kg
(24,250.85 lb)- Overall length
3,800 mm
(149.6 in)- Overall width
2,860 mm
(112.6 in)- Overall height
3,160 mm
(124.4 in)
Description
Pretensioned ball screws
Rigid threading
Workpiece Cooling System
Heat exchanger in the electrical panel
Auto power off
Complete fairing
Oil collector guides
Air seal on the spindle
Automatic lubrication system
RS232 interface
Air gun
electronic steering wheel
Leveling plugs
CE marking
