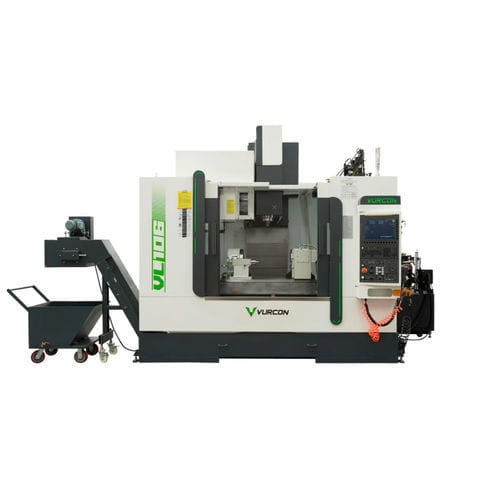

3-axis CNC machining center VL-106verticalrigidCE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Other characteristics
- rigid, CE
- X travel
1,000 mm
(39.37 in)- Y travel
620 mm
(24.41 in)- Z travel
630 mm
(24.8 in)- Rotational speed
Min.: 20 rpm
(126 rad.min-1)Max.: 10,000 rpm
(62,832 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
36 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
32 m/min
- Table load capacity
1,000 kg
(2,205 lb)- Tool weight (max)
8 kg
(17.6 lb)- Positioning accuracy
0.008 mm
(0.00031 in)- Repeatability
0.005 mm
(0.0002 in)- Weight
7,600 kg
(16,755.13 lb)- Overall length
2,850 mm
(112.2 in)- Overall width
2,450 mm
(96.5 in)- Overall height
2,850 mm
(112.2 in)
Description
Linear guides and roller carriages on X/Y/Z axes
Preloaded ball screws
Rigid tapping
Workpiece cooling system
Heat exchanger in the electrical cabinet
Automatic shutdown
Full enclosure
Oil guide collector
Air seal on spindle
Automatic lubrication system
RS232 interface
Air gun
Electronic handwheel
Leveling pads
CE marking
Sectors in which it is used:
ARMAMENT
EDUCATION / TRAINING
TOOL MANUFACTURERINDUSTRIAL
MAINTENANCE
GENERAL MACHINING
MOLD / DIE /OTHERS
ENGINEERING AND MANUFACTURING SERVICE
