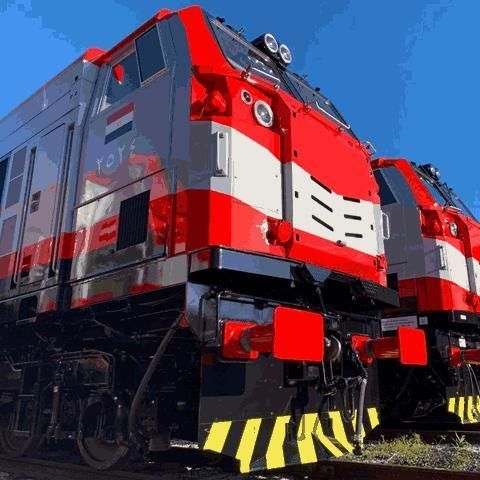

Electric locomotive ES30ACi

dieselpassengerfreight

Overview
Built on a service-proven locomotive platform, the ES30ACi Evolution Series is a diesel-electric, double-cab full-width locomotive engineered for passenger and freight operations in high-temperature and dusty environments. Capable of meeting UIC 3a emission standards and designed for efficient fuel consumption and low total cost of ownership. Wabtec provides the Evolution Series platform.

Key features

• Two air-conditioned operator cabs (double-cab)
• Full-width carbody
• AC individual-axle traction control for improved haulage on marginal track
• Two power ratings: 4,250 GHP (3,159 kW) and 3,300 GHP (2,461 kW)
• High-speed operation (maximum 140 km/h)
• Head-end power (HEP) capability
• Advanced cooling system for operation up to 55 °C

Product details
The ES30ACi is a multipurpose double-cab locomotive suitable for mixed passenger and freight service. It is equipped with a GEVO12-based powerplant option, large fuel capacity for extended range and modular systems for straightforward maintenance access. AC single-axle traction control enhances tractive performance under substandard track conditions. The platform benefits from extensive global operating experience.

Specifications (summary)

• Number of powered axles: 6
• Weight (max): 135 tonnes
• Weight per axle: 22.5 tonnes
• Track gauge: 1,435 mm
• Emissions: up to UIC 3a (configurable to Tier 3)
• Horsepower (gross): 4,250 GHP (3,159 kW) or 3,300 GHP (2,461 kW)
• Starting tractive effort: 400 kN
• Maximum speed: 140 km/h
• Total fuel capacity: 6,300 L (usable 6,000 L)
• Engine model: GEVO12
• Maximum ambient operating temperature: up to 55 °C

Additional capabilities

• Support for emissions configurations up to Tier 3 / UIC 3a
• Proven Evolution platform with large global fleet experience
• Advanced cooling and modular components to maintain performance and simplify servicing
