Electric locomotive ES57ACi

dieselfreight

Overview

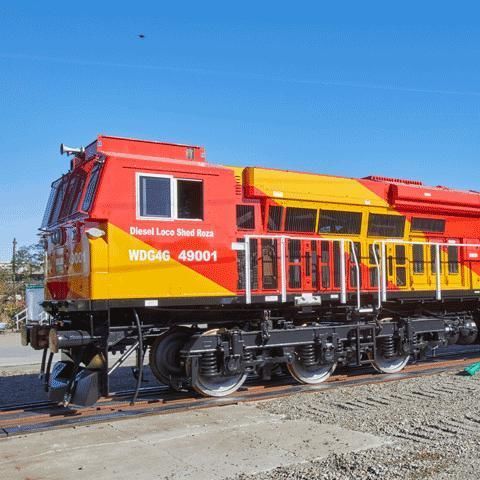

The ES57ACi is a medium-weight heavy-haul diesel-electric locomotive built on the Evolution Series platform. It is designed for operation in high-ambient temperature and dusty environments and is capable of meeting UIC 3A emissions standards. The platform provides 6-axle traction within a 23 tonnes/axle weight range and a capability up to 6,000 GHP.

Key features

• Single air-conditioned cab
• AC individual-axle traction control
• High starting tractive effort (570 kN)
• Advanced cooling system for high ambient temperatures
• Fuel capacity: 8,300 L (8,000 L usable)

Product details
Model: ES57ACi — Evolution Series platform
Engine: GEVO16
Emissions: up to Tier 3 / meets UIC 3A

• Powered axles: 6
• Weight (max): 138 tonnes
• Weight per axle: 23 tonnes
• Track gauge: 1676 mm
• Horsepower (gross): 4,250 GHP (3,159 kW) or 3,300 GHP (2,461 kW); platform capability up to 6,000 GHP
• Starting tractive effort: 570 kN
• Maximum speed: 100 km/h
• Total fuel capacity: 8,300 L; usable: 8,000 L
• Maximum ambient operating temperature: up to 40 °C
• Traction control: AC individual-axle traction control
