Diesel locomotive ES43BBi

freight

Overview

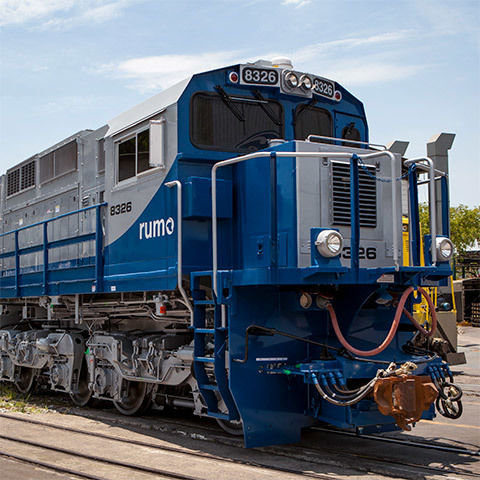

The Wabtec Evolution Series ES43BBi heavy-haul locomotive is engineered for 1,000 mm gauge freight lines. Built on a proven Evolution platform, it combines a service‑proven 12‑cylinder GEVO12 engine (4,500 HP) with eight powered axles and an advanced AC traction system with individual axle control to operate reliably in extreme environments and restrictive clearances.

Features

• Designed specifically for 1,000 mm gauge heavy‑haul operations
• 12‑cylinder GEVO12 engine rated 4,500 HP
• Eight powered axles for high tractive effort
• AC traction with individual (single‑axle) control
• Robust articulated trucks for heavy‑duty and sharp‑curve operation
• Redesigned air‑to‑air cooling and additional blowers integrated on traction motors
• Optimized for extreme climates, tight clearances and sharp curves

Customer Value

• Higher horsepower and tractive effort enables replacement of two DC six‑axle locomotives
• Individual‑axle AC control improves haulage capability and reliability
• Low wheel and rail wear in sharp curves and restricted clearances
• EVO technology reduces fuel consumption and emissions, lowers downtime and extends overhaul intervals
• Reduced lifecycle and operational costs with improved availability

Technical specifications

• Model: ES43BBi
• Manufacturer: Wabtec (Evolution Series)
• Gauge: 1,000 mm
• Engine: GEVO12, 12‑cylinder
• Rated power: 4,500 HP
• Axles: Eight powered axles
• Traction: AC traction system with individual axle control
• Truck type: Articulated trucks, heavy‑haul design
• Cooling: Redesigned air‑to‑air system; additional blowers integrated on traction motors
• Operational design: Suitable for extreme environments, sharp curves and tight clearances
