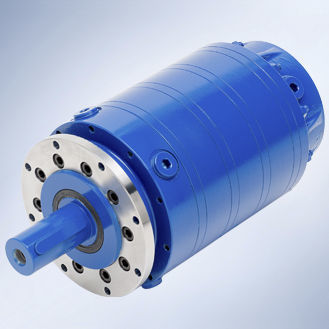

Planetary gearbox

helical gearcoaxial> 10 kNm

PLANETARY GEARS FOR SIGNIFICANT DYNAMIC LOADS Benefits to you at a glance: High degree of economy Short delivery times Compact design Very high transmission ratios Particularly high-performing and heavy duty Precise and low-noise running Space savings due to coaxial arrangement of the drive and output shaft Lower weight compared to normal helical gear Can be combined with all commercially available IEC flange motors Accessories for WF planetary gear: Torque supports Shrink discs Flanges in various versions Lock washers The Walther Flender planetary gears boast performance strength, a high degree of reliability and smooth running. Such factors as the heavy-duty bearings to transfer tougher radial and axial stresses mean that these industrial gears fulfil strict dynamic requirements. Thanks to the variable assembly of the housing parts for every installation positon, the gearboxes are suitable for almost any application. With the three sizes NRG 10, 20 and 40, total transmission ratios from 3.45/1 to 3,657.3/1 (1- to 4-stage) can be covered. The WF planetary gears are available with various drive and output versions, as a base or flange version, with free input shaft or for IEC motor attachment. Our planetary gears are designed in accordance with the modular principle, as is the entire WF gearbox range. They are particularly suitable for use in stirrers, crushers, hydroelectric plants, shredders, conveyor belts, filters, mixers, mills, lifting units, extruders, bending machines and in the paper industry.
