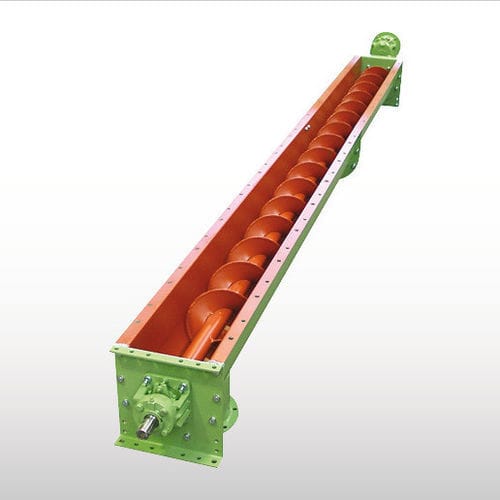

Screw conveyor USCA

transporthandlingmeasuring

Presentation
Shafted CEMA screw conveyors for handling and moving flowable bulk solids across industrial processes. Compact and modular, the USCA series is designed for conveying, metering and optional mixing in continuous handling lines.

Made to Order
Configured to order from CEMA standard components to meet application and space requirements, with material and finish choices adapted to operating conditions.

Technical description

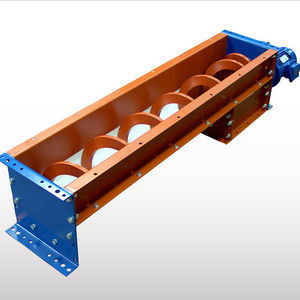

The modular shafted screw conveyor consists of a U- or V-shaped trough with bolted flanged sections, helicoid or sectional flighting welded on a center pipe, end plates, flanged end bearing assemblies with shaft seals and intermediate hanger bearings as required. Drives are gear type and can be mounted at inlet or outlet.

Function
Designed for continuous transport and controlled metering of powders and granular materials. Available in CEMA Group 1 (light), Group 2 (medium-heavy) and Group 3 (extra-heavy) constructions to match application demands across industries such as grain, feed, plastics, chemicals, cement and mining.

Features

• Modular flanged trough sections with bolted or clamped covers
• Helicoid or sectional flighting welded to center pipe; continuous welding options
• Standard and oversized center pipes to limit deflection for long spans
• Flanged end bearing assemblies with shaft seals; intermediate hanger bearings (self-lubricating or greased)
• Square/rectangular/round inlet and outlet spouts with industry standard drilled flanges

Benefits

• Adaptable modular design for easy maintenance and spare parts matching
• Suitable for precise metering and continuous conveying in process lines
• Multiple material and finish options to extend service life in abrasive or corrosive conditions

Options

• Special paint finishes (high-temperature, epoxy)
• Alternative flight configurations (ribbon, cut, cut & folded, paddles)
• Wear-resistant materials, hard surfacing and liners (UHMW, AR steel, wear bars)
• Special shaft seals (gas/air-purged, grease chamber), overflow relief doors, various drive configurations

Technical specifications

• Materials: mild steel, AR steel, stainless steel and special alloys with appropriate finishing
• Trough types: U-trough (standard) and V-trough (flared)
• CEMA standard diameters (U-trough): 6" , 9" , 12" , 14" , 16" , 18" , 20" , 24"
• Standard shaft diameters: 1-1/2", 2", 2-7/16", 3", 3-7/16" with 2-bolt drilling
• Flighting: helicoid or sectional welded on center pipe; continuous welding one or two sides
• Bearings & seals: flanged end bearing assemblies with shaft sealing units; intermediate hanger bearings; special seals available
• Drive: gear drive sized for application; inlet or outlet mounting options
• Options: liners, special paints, oversized center pipes, pedestal end bearings, clamped covers, custom inlet/outlet configurations
