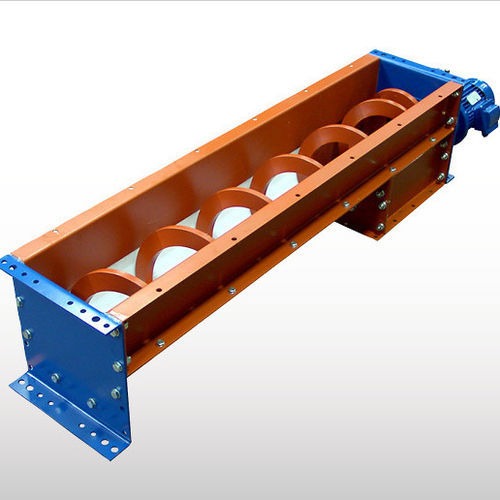

Shaftless screw conveyor USSSC

for materials handlingmodularcompact

Overview
USSSC Shaftless Screw Conveyors offer large volume capacity and the possibility of handling particularly difficult materials. They are designed for handling urban solid waste, screenings and floating matter, de-watered, thickened or conditioned sludge, packaged food, creams or pastes, and waste from meat, fish, fruit and vegetable processing. The conveyor is based on an extra-heavy-duty shaftless screw sliding on a wear-resistant liner inside a fully enclosed trough housing, providing obstacle-free handling, minimal maintenance and easy access for inspection and cleaning.

Applications

• Wastewater treatment
• Sugarhouse / sugar mill rejects
• Fish industry
• Solid waste treatment
• Fruit and vegetable processing plants
• Beverage industry
• Pulp and paper
• Chemical industry
• Food industry in general (including packaged food, creams, pastes)
• Meat processing plants, abattoirs/slaughterhouses, rendering plants
• Restaurants, canteens and catering
• Also used for some dry abrasive products such as cement, sand and abrasive dusts

Function
The shaftless screw conveyor (SSC) conveys material by means of an extra-heavy-duty shaftless spiral that slides on a wear-resistant liner installed in the lower part of the U-trough. The absence of intermediate bearings prevents blockages from tangled or heterogeneous materials and guarantees obstacle-free material handling. The trough is completely enclosed to prevent leakage; covers with gaskets allow odor-free operation and protect against contaminants while enabling full access for cleaning and inspection. Loading can be performed into the open trough or through optional inlet configurations.

Features

• Throughput rates up to 4,200 CFH
• Drive power range: 0.75 HP to 10 HP
• Trough and spiral manufactured in carbon steel or 304L / 316L stainless steel (with appropriate surface treatment)
• Lower trough with wear-resistant liner (UHMW)

Benefits

• Small footprint
• Odor-free operation when fitted with covers and gaskets
• High efficiency conveying of difficult materials
• Complete emptying
• Simple design with few components
• Easy access for cleaning and inspection
• Low maintenance
• Modular components for adaptation to multiple applications
• High degree of self-cleaning

Options

• Bolted or clamped trough cover
• Special inlets (top inlet spout in bolted cover or side inlet in loading zone)
• Inspection and overflow hatches
• Drainage kit
• Trough feet
• Washing nozzles
• Different drive types: direct, coupling transmission, chain transmission, belt transmission
• Different liners (including versions with wear indicators), bottom bars or plates, white or black color plastic
• Hold down angles to guide spiral in trough
• Multiple screw live bottoms
• Special diameters and pitches available

Technical specifications

• Shaftless screw concept as alternative to shafted screw conveyors
• Available diameters: single flight 6" to 24"; double flight 9" to 24"
• Material conveying by extra-heavy-duty shaftless spiral sliding on wear-resistant liner
• Trough types: U-troughs in carbon steel or 304L / 316L stainless steel with appropriate surface treatment
• Lower trough: liner installed (typical material: UHMW)
• Discharge: standard bottom discharge or open end outlet at one trough end
• Drive end: end plate holding end bearing assembly with flanged shaft coupling to screw
• Drive power: typically from 0.75 HP up to 10 HP depending on application
• Maximum throughput: up to 4,200 CFH (application- and configuration-dependent)
• Loading options: standard open-top loading; optional inlet spout in bolted trough cover; optional side inlet in loading zone
• Wide choice of liners and wear solutions depending on material characteristics
• Special manufacturing processes and construction features for increased resistance to oversize, variable particle size and abrasion
