Live bottom bin MU

live bottom bin
live bottom bin
live bottom bin
live bottom bin
live bottom bin
live bottom bin
live bottom bin
Add to favorites
Compare this product


Description

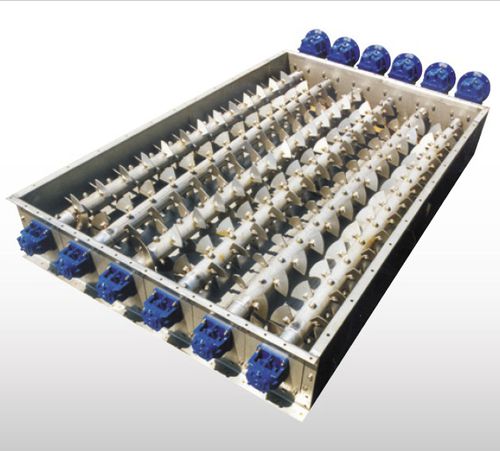

MU Live Bin Bottoms are the ideal solution for discharging particularly difficult materials from polygonal hoppers or silos. Among others, they are used for extracting biological or industrial sludge, paper scrap, wood chippings, sawdust, as well as flour or bran in the flour milling industry. Description MU Live Bin Bottoms (Multiple Screw Feeders) are equipped with a modular trough which encloses up to 6 shafted helicoid flight or paddle screws, externally flanged, fully protected end bearing assemblies complete with manually adjustable packing gland and shaft seal, a rectangular outlet spout covering the entire width of the bin bottom, bolted end plates, splined shaft couplings for medium heavy-duty, and flanged shaft couplings for the heavy-duty version. Furthermore, MU Live Bin Bottoms are equipped with one gear motor per screw shaft or, depending on the application, with a drive unit driving more screws. Function MU Live Bin Bottoms are used for discharging difficult materials from polygonal hoppers or silos. In particular, they are used for extracting biological or industrial sludge, paper scrap, wood chippings, sawdust, as well as flour or bran in the flour milling industry. Features • Robust design • Screw diameter: 150 ~ 600 mm (6 ~ 24 in) • Up to six screws in one trough • Open trough length ranging from 1,500 to 4,000 mm (5 ~ 13 ft) • Trough housing and screws manufactured from carbon steel, stainless steel or SINT engineering polymer (screws only) • For certain applications screws and trough lining manufactured from SINT engineering polymer • Medium heavy-duty or extra heavy-duty helicoid flight screws or paddle screws

VIDEO
