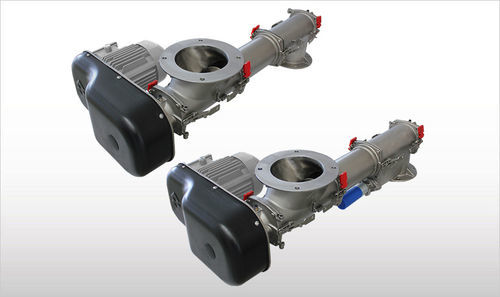

Aseptic dosing feeder MICRODEX™

single-screwsanitaryfor food

Presentation / Overview
The MICRODEX™ system is a modular industrial solution for extracting, conveying, macro-feeding and micro-feeding powders and granular materials in food and chemical processing lines. Built for hygienic applications, it combines compact footprint with precise micro-dosing capability.

Design / Construction
MICRODEX™ integrates a main screw unit for extraction and conveying with an optional micro-feed screw at the discharge to enable reproducible micro-dosing. Construction uses food-grade 304L stainless steel, smooth, crevice-free internal surfaces and an oil-free drive to reduce contamination risk. Flange sealing systems are compliant with EHEDG and DIN standards and shaft seals can be air/gas-purged.

Function
Four functions are combined in a single module: material extraction, conveying, macro-feeding and micro-feeding. The system supports continuous or batch feed strategies and delivers repeatable dosing for downstream processes in food and chemical plants.

Features

• Modular, compact design for easy integration
• Smooth, crevice-free internal surfaces for hygienic cleaning
• Oil-free drive unit and optional oil-free gear reducer
• Food-grade 304L stainless steel construction
• Air/gas-purged shaft seal and optional purged labyrinth seals
• EHEDG/DIN-compliant flange sealing systems
• ATEX-certified versions available for hazardous areas
• Safety devices including coded non-contact microswitches

Benefits

• Combines extraction, conveying, macro- and micro-feeding in one compact unit
• Reduced product residue and easier cleaning compared with conventional feeders
• Improved process control and reproducible micro-dosing
• Flexible configuration to match production requirements
• Quick dismantling, inspection hatches and padlockable quick-release hooks for fast maintenance
• Suitable for contamination-sensitive and high-hygiene environments

Options

• Additional micro-feed screw at discharge for finer dosing
• Oil-free gear reducer for maximum hygiene
• Hinged folding flange opening and extra inspection hatch
• Padlockable quick-release hooks
• Purged labyrinth seals
• Additional safety micro-switches

Documents
Brochure available for MICRODEX (English).

Technical specifications

• Modular main screw unit with optional micro-feed screw for precise micro-dosing
• Food-grade 304L stainless steel; hygienic, smooth internal surfaces
• Oil-free drive unit; optional oil-free gearbox
• Shaft sealing: air/gas-purged shaft seal; optional purged labyrinth seals
• Flange sealing: EHEDG and DIN compliant systems
• ATEX-certified versions available
• Safety: coded non-contact microswitches and other safety devices
• Maintenance: quick dismantling, inspection hatch, padlockable quick-release hooks
• Application: extraction, conveying, macro- and micro-feeding of powders and granular materials in food and chemical processing
