High-temperature conveyor MT-HT

screwhorizontalelectric drive

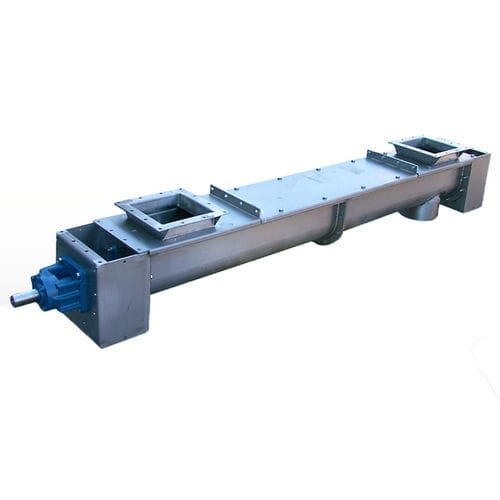

Designed for extra heavy-duty applications, MT / HT Screw Conveyors and Feeders perfectly satisfy the requirements of conveying or feeding – among others – regenerated sand in foundries, coal power stations, or drying plants. Description Extra heavy-duty MT / HT Trough Screw Conveyors and Feeders are designed for medium-high temperature (MT-series) and high temperature (HT-series) applications. For this reason intermediate bearings are absent. MT / HT are manufactured from carbon or stainless steel with appropriate surface treatment. They are made up of a U-shape trough equipped with at least one outlet spout, an end plate at each trough end, helicoid screw flighting welded on a centre pipe with flanged coupling at each end, two end bearing assemblies complete with offset shaft seal, and a bolted trough cover usually equipped with at least one inlet spout. Furthermore, MT / HT Screw Conveyors are equipped with a gear motor that suits the application. Function Designed for extra heavy-duty applications, MT / HT Screw Conveyors and Feeders satisfy the requirements of conveying or feeding regenerated sand in foundries, coal power stations, or drying plants. Features • Wire welding • XUC-type shaft seals with fibreglass seals • Bolted trough covers • Fibreglass gaskets • Flanged shaft couplings • Insulation spacer (HT)High quality shaft seals with split packing glands (HT)
