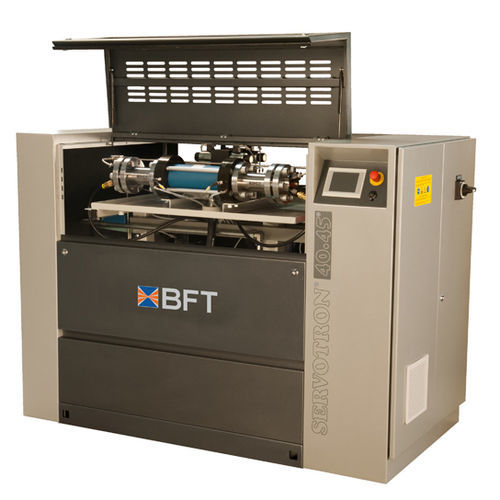

Axial piston pump BFT SERVOTRON®
waterelectricstationary

Axial piston pump - BFT SERVOTRON® - Water Jet Sweden AB - water / electric / stationary
Axial piston pump - BFT SERVOTRON® - Water Jet Sweden AB - water / electric / stationary
Axial piston pump - BFT SERVOTRON® - Water Jet Sweden AB - water / electric / stationary - image - 2
Add to favorites
Compare this product

Characteristics

Technology
axial piston
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Applications
high-pressure, for water-jet cutting machines
Protection level
standard
Other characteristics
high-efficiency
Flow

3.8 l/min, 4.6 l/min
(1.00385 us gal/min, 1.21519 us gal/min)

Pressure

4,000 bar
(58,015.095 psi)

Max.: 4,200 bar
(60,915.85 psi)

Power

37 kW, 45 kW
(50.31 hp, 61.18 hp)

Max.: 45 kW
(61.18 hp)

Min.: 37 kW
(50.31 hp)

Length

Max.: 1,950 mm
(77 in)

Width

Max.: 970 mm
(38.19 in)

Height

Max.: 1,400 mm
(55.12 in)

Weight

Max.: 1,160 kg
(2,557.36 lb)

Min.: 1,150 kg
(2,535.32 lb)

Description

SERVOTRON® is available in the power classes 37 kW and 45 kW. Its operating pressure of 4,000 bar has been considered to be the optimum in the professional waterjet cutting sector for years. The Austrian technical control board has confirmed that up to 24% energy can be saved with SERVOTRON® in a comparison with conventional pumps. It is available with a flow rate of 3.8 l per minute and 4.6 l per minute. Highly efficient servo motor for optimal pressure and water flow regulation The working principle of a slightly different kind. The operational states are measured here in the high-pressure line and passed on to the control system. This creates a control circuit which reacts directly to the required water quantity and water pressure. The motor can be accelerated to 2,700 rotations per minute in 60 milliseconds. If the cutting head is closed, the motor stops and does not consume any energy. The working method of the SERVOTRON® has a considerably higher thermal efficiency factor.
