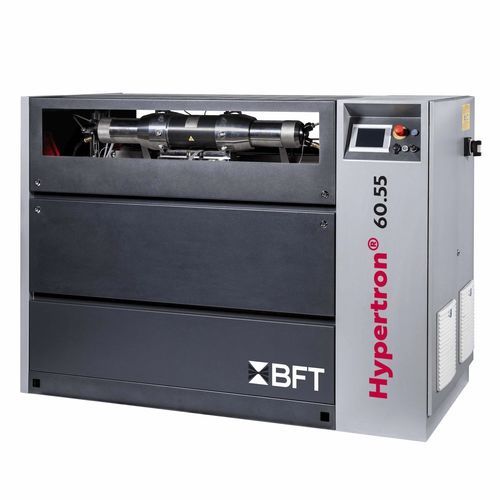

Axial piston pump BFT HYPERTRON®

waterelectricstationary

Absolute top performance: Faster than conventional high-pressure pumps With HYPERTRON®, you can reach a 30 to 50 % higher cutting speed and energy efficiency thanks to ultra-high-pressure technology. It does not matter here if you want to work with two cutting heads or only with one cutting head, HYPERTRON® provides the right pressure – from 500 to 6,000 bar. Flexibility and high performance combined in one product. Axial piston pump with asynchronous motor In the HYPERTRON® high-pressure pumps, an axial piston pump with electronic pressure/flow controller is driven by an asynchronous motor with frequency inverter. The hydraulic units have high control dynamics. The use of two soft-switching hydraulic valves with specially matched control geometry ensures extremely short switching times. The high-pressure pump has stepless settings from 500 to 6,000 bar. The distinguishing features of the intensifier are the long service lives of the patented high-pressure seals and the easily accessible non-return valves. The special design of the external non-return valves ensures that the intensifier is very easy to maintain.
