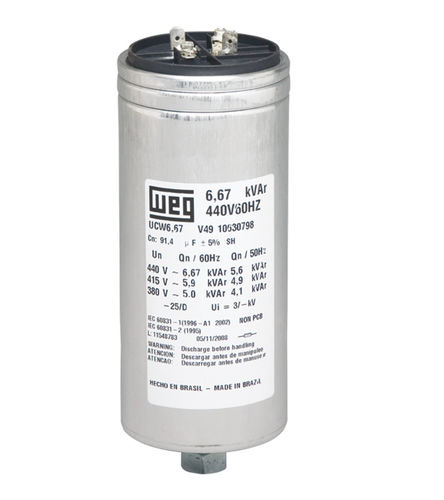

Metalized polypropylene film capacitor UCW cylindricalcurrentsingle-phase
Add to favorites
Compare this product
Characteristics
- Type
- metalized polypropylene film
- Configuration
- cylindrical
- Technical characteristics
- self-healing, discharge, current, single-phase, three-phase
- Capacitance
Max.: 15 µF
Min.: 5 µF
Description
Developed using self-healing, metalized polypropylene film, they feature a safety interrupting device against internal overpressure. Dielectric losses below 0.4 W/kVAr.
Features
Self-healing metalized polypropylene film
Internal over pressure security device
Maximum allowed fault current of 10kA
Dielectric losses smaller than 0,2 W/kVAr
Internal discharge resistors in three-phase units, modules and banks
Designed in accordance with standards IEC 60831-1/2 and UL810
