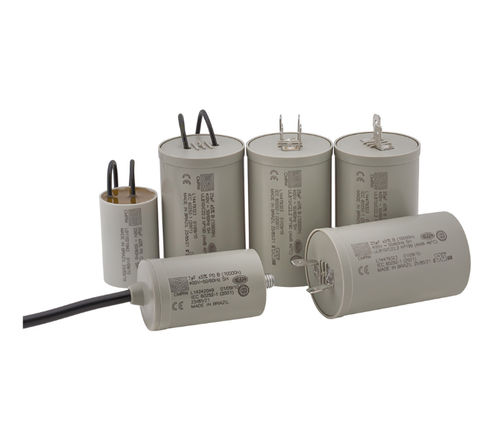

Metalized polyphenylene sulfide film capacitor CMRWcylindricalreferencecurrent
Add to favorites
Compare this product
Characteristics
- Type
- metalized polyphenylene sulfide film
- Configuration
- cylindrical
- Technical characteristics
- voltage, current, frequency, reference
- Capacitance
Max.: 65 µF
Min.: 2 µF
- Voltage
250 V, 400 V, 440 V
Description
The CMRW capacitors are designed for application in combination with electric motors.
Main characteristics
High reliability
Self-healing
Low losses
Reduced volume
Technical specification as per IEC, VDE and NBR
Rated voltage Un: 250, 400 and 440V
Rated frequency: 50/60 Hz
Capacitance tolerance: ± 5%
Capacitor dielectric loss (120Hz): <0.4W/kVAr
Ambient temperature: - 25º C to 85º C
Maximum accepted voltage: 1.10.Un
Maximum accepted current: 1.3.In
Reference standard: IEC 60252-1
Protection safety class: PO
