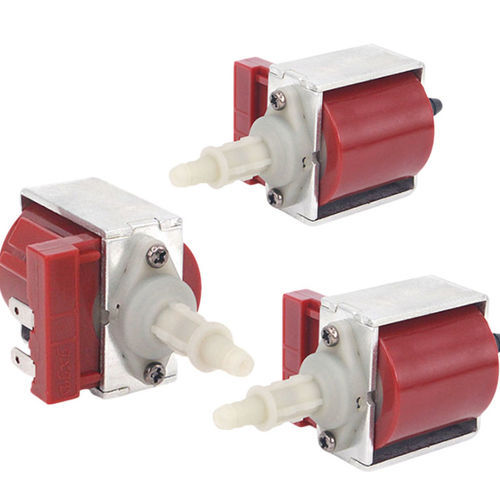

Diaphragm pump WL38DCB

wateroilfor chemicals

Product overview
The WL38DCB micro solenoid pump is a compact electromagnetic pump designed for precise control and transfer of small fluid volumes in medical and laboratory equipment. It delivers repeatable dosing through an electromagnetic coil with fast response, low power consumption and IP65 protection, suitable for integration in infusion, drug-delivery and diagnostic devices where footprint and dosing accuracy are critical.

Key features

• Compact design with precise dosing capability
• Fast electromagnetic response for accurate fluid control
• Compatible with water, many chemicals and light oils
• Low power consumption and long service life under specified duty cycles
• Customizable stroke (2–3 mm) and configurations to match application needs

Datasheet (selected values)
Brand: Weilong Technology
Model Number: WL38DCB
Rated Voltage (V): DC 220V, 60 Hz
Rated Power (W): 25 W
PWM: 30 ms
Kpa: as specified
Stroke (mm): 2–3 mm (customized)
Reset Time (s): 1 s ON, 9 s OFF
Flow Rate: 500 ml/min
Certification: CE, ROHS, ISO9001
Material: Carbon steel and plastic
Lead Wire Length (mm): 200 mm
Inlet/Outlet: as specified
Tolerance of Dimension: ±0.1 mm
Water-proof: Yes
Insulation Class: IP65
Hi-Pot Test: AC 600V 50/60Hz 2s
Non-excitation Holding Force: 0
Working Temperature: -10°C to 100°C
Duty Cycle: 1–80%
Thread Depth (mm): 15 mm
Sample Order: Yes
Warranty: 1 year
MOQ: 1000 pcs
Supply Ability: 500 pcs/week
Delivery Time: 30 days
Port of Loading: Shenzhen

Applications

• Medical devices: infusion pumps, drug delivery systems and diagnostic instruments requiring precise dosing
• Laboratory systems: reagent handling, sampling and analytical equipment
• Food & beverage: dispensing modules and flavor injection in small machines
• Industrial automation: chemical dosing, cooling and lubrication for small circuits
• Automotive: small fluid circulation and emission-control components
• Agriculture & consumer: irrigation modules, humidifiers and compact dispensers

Advantages & Disadvantages (summary)

• Advantages: accurate dosing, compact footprint, straightforward integration, energy-efficient for intermittent operation
• Disadvantages: limited flow capacity for high-volume needs, potential vibration/noise, heat generation during continuous duty; not suitable for high-viscosity or particle-laden fluids

Maintenance & Troubleshooting (summary)

• Regularly clean filters and flow channels; inspect wiring and connectors
• Avoid running the pump dry; use compatible materials for aggressive chemicals
• Check voltage supply, wiring, trapped air, blocked inlet/outlet, worn parts and valve function for common faults
• Reduce duty cycle or improve ventilation to mitigate overheating; check mounting and operating frequency to reduce vibration

Technical specifications

• Brand: Weilong Technology
• Model: WL38DCB
• Rated Voltage: DC 220V, 60 Hz
• Rated Power: 25 W
• Flow Rate: 500 ml/min
• Stroke: 2–3 mm (customizable)
• Reset Time: 1 s ON, 9 s OFF
• Lead Wire Length: 200 mm
• Materials: Carbon steel and plastic
• IP Rating / Insulation: IP65
• Operating Temperature: -10°C to 100°C
• Duty Cycle: 1–80%
• Certifications: CE, ROHS, ISO9001
• Warranty: 1 year
• MOQ: 1000 pcs; Supply ability: 500 pcs/week; Typical delivery: 30 days
