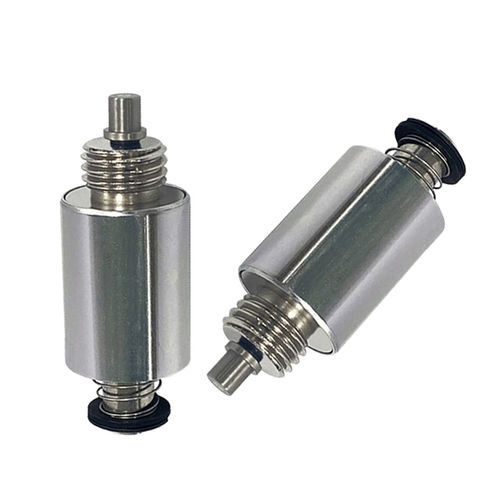

Electric actuator WL2432

linearmagnetic pistonspring-return

Product Overview
The tubular actuator solenoid is a precision linear electromagnetic actuator that converts electrical energy into controlled linear mechanical movement. Its cylindrical tubular construction (coil, plunger and return spring) provides high force density in a compact form, delivering fast response, long service life and stable operation under continuous duty. The device supports push or pull configurations and is designed for straightforward integration and minimal maintenance.

How it works
When the coil is energized, a magnetic field is generated inside the tubular actuator that draws the internal plunger to produce linear motion. De-energizing allows the return spring to reposition the plunger. The tubular geometry creates an efficient magnetic circuit that maximizes force for a given size; performance depends on coil power, applied voltage, duty cycle and air gap.

Key features

• Compact tubular geometry delivering a high force-to-size ratio.
• Fast response suitable for high-speed switching and precision ON/OFF motion control.
• Engineered for extended operational life and high cycle counts.
• Available in multiple voltages and stroke lengths for various applications.
• Sealed tubular design improves durability and environmental resistance (standard variant non-waterproof).
• Flexible mounting options with both-side mounting and screw holes for easy installation.

Applications

• Industrial automation: positioning, ejecting, clamping, switching functions.
• Valve control and fluid handling systems.
• Medical devices requiring precise linear movement.
• Vending machines and dispensing equipment.
• Access control and electronic locks.
• Automotive actuation and control systems.
• Robotics and smart manufacturing systems.

Advantages & disadvantages (summary)

• Advantages: compact size, quick response, reliable operation with low maintenance, high force-to-size ratio, multiple voltage options and broad industrial applicability.
• Disadvantages: limited stroke range compared with electric cylinders or linear motors; force reduces with longer strokes; coil heating under continuous/high-duty operation requires thermal management; sensitive to misalignment and may need environmental protection in harsh conditions.

Technical specifications

• Brand: Weilong Technology
• Model number: WL 2432
• Rated voltage: DC 12 or 24 V
• Rated power: 10–15 W
• Work model / lifecycle: 100,000 lifespan cycles (table entry)
• Push / Pull force: ~100 gf at 10 mm stroke (as listed)
• Stroke: 3–10 mm
• Reset time: listed as 1 s / 3 s off (table entry)
• Service life: 300,000 cycles (table entry)
• Certifications: CE, ROHS, ISO9001
• Material: Carbon steel housing with zinc plated coating
• Lead wire length: 200 mm
• Install style: both sides with three mounting screw holes
• Dimensional tolerance: +/- 0.1 mm
• Water-proof: None (standard variant)
• Insulation class: F (150°C)
• Hi-Pot test: AC 600 V 50/60 Hz 1 s
• Non-excitation holding force: 0
• Working temperature range: -10°C to 100°C
• Duty cycle: 1–100% (depends on variant and thermal management)
• Payment terms: TT or LC at sight
• Sample order: Yes
• Warranty: 1 year
• MOQ: 500 pcs
• Supply ability: 5000 pcs per week
• Delivery time: 30 days
• Port of loading: Shenzhen
