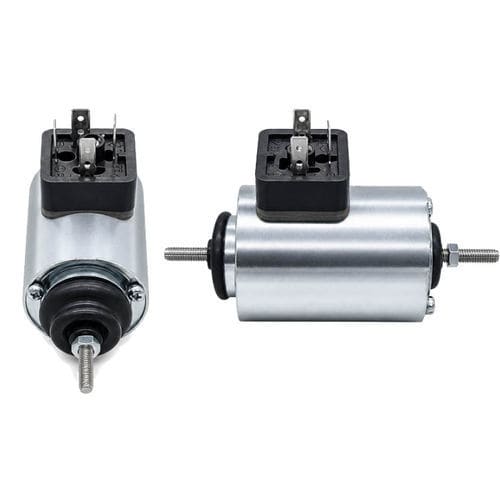

Linear solenoid WL6065

tubularfor doorcompact

Product overview
The WL6065 20 mm push-pull solenoid is a tubular linear actuator that converts electrical energy into controlled push or pull motion. Designed for compact industrial installations, the WL6065 features a 20 mm frame, customizable stroke (5–20 mm) and multiple voltage options. Weilong Technology manufactures this model for applications requiring fast response and repeatable linear travel.

Key features

• Compact tubular design for installation in confined spaces
• Available strokes from 5 to 20 mm (customizable)
• Multiple rated voltages: DC 6V, 12V, 24V (also 48V and 60V options)
• Precision copper winding for consistent electromagnetic performance
• Push and pull force range typically 30–50 N depending on voltage and stroke
• Carbon steel housing with zinc plating for mechanical protection
• Adjustable mounting (screw & cap) and 200 mm lead wires
• Fast reset time (~0.1 s) and long service life (~300,000 cycles)

Applications

• Intelligent door locks and cabinet locking systems
• Vending machines (dispensing and coin-return mechanisms)
• Office automation (printers, copiers, paper handling)
• Medical and laboratory devices requiring precise linear control
• Home appliances and consumer devices (dispensers, switches)
• Industrial automation: robotics, sorting, testing and production lines
• Automotive subsystems: locks, latches and compact actuator needs

Technical specifications & ordering

• Brand: Weilong Technology
• Model: WL6065
• Frame / nominal size: 20 mm
• Rated voltages: DC 6V, 12V, 24V (48V, 60V optional)
• Rated power: approx. 80–150 W
• Working type: Tubular push-pull actuator
• Holding force: 30–50 N (depends on stroke & voltage)
• Stroke range: 5–20 mm (customizable)
• Reset time: 0.1 s
• Service life: ~300,000 cycles
• Material / housing: Carbon steel with zinc plating
• Lead wire length: 200 mm
• Installation: adjustable screw & cap
• Insulation class: F; Hi-Pot: AC 600V 50/60Hz 2s
• Operating temperature: -10°C to 100°C; Duty cycle: 1–100% (model dependent)
• Certifications: CE, RoHS, ISO9001

Supply, MOQ & warranty

• MOQ: typically 1000 pcs; Supply ability: 5000 pcs/week
• Sample order: available
• Lead time: approx. 30 days
• Payment terms: TT or LC at sight
• Warranty: 1 year
• Port of loading: Shenzhen
