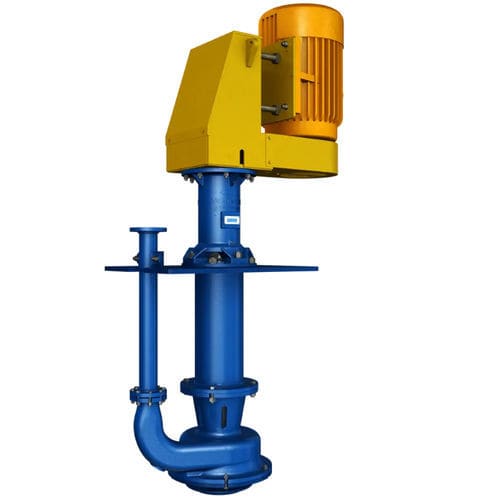

Centrifugal pump Warman® WBV®

slurryelectricsemi-submersible

Our ultra heavy-duty vertical slurry pumps are the industry benchmark for general sump applications. Features and Benefits Prevents Sump Pump Blockages The integrated impeller agitation vanes of the Warman® WBV® heavy-duty trash pump prevent blockages within the pump, eliminating the need for an external system with questionable results and high costs. Solids are kept in suspension and the sump can be almost completely emptied with minimal settlement. Additionally, the pump's suction cover directs flow from the agitator vanes into the pump inlet to prevent large particles from entering and clogging the impeller. Inlets have strained passageways to limit the size of particles, which could otherwise enter the sump pump and potentially cause unnecessary damage or blockage. Long Wear Life Warman® WBV® heavy-duty trash sump pumps feature highly wear-resistant Ultrachrome® A05 metal parts, with extra thickness added to high-wear areas to provide long wear life. The pump casing also minimises parts and reduces the number of joints and overall wear with a combination top entry strainer and flange that attaches to the pump column along with a cast discharge bend. Improved Sealing The pump's suction cover and casing are sealed by a rubber casing seal. The seal is activated by the internal pump pressure to prevent potential leakages. An O-ring seal protects the impeller and shaft threads from ingress of slurry. Low Power Consumption The design of the patented Warman® WBV® pump integrated agitation system achieves high performance with low power consumption. Constant Priming and Continuous Pumping
