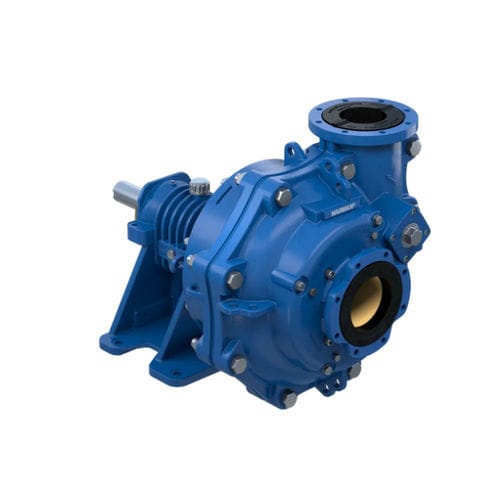

Slurry pump Warman® WBH®
centrifugalindustrialprocess

slurry pump
slurry pump
slurry pump
slurry pump
Add to favorites
Compare this product


Characteristics

Media
slurry
Technology
centrifugal
Domain
industrial
Applications
process, transport
Other characteristics
horizontal mount, low-pressure
Flow

3,000 m³/h (105,944.0002 ft³/h)

Pressure

30 psi, 218 psi

Head

76 m (249'04")

Description

The Warman® WBH® pump is the world’s new standard for heavy duties. A wide variety of impellers and shaft seals provide a perfect fit for a wide range of applications. The WBH® pump is designed to provide excellent wear life while maintaining efficiency through 'one point adjustment' during the wear cycle for the best total operating cost. The low-flow gland seal, expeller seal and mechanical seal options on the WBH® pump mean there is less dilution of the slurry and lower required flow of gland water. Key features/benefits The 'One Point' front liner adjustment feature allows an operator to both rotate and axially move the liner to minimise front impeller gap to reduce wear and maintain performance Adjustment can be made while pump is running so no need to stop production. Wear components are designed and optimised using state of the art Computational Fluid Dynamics methods Large capacity bearings which can withstand high loads including thrust while still providing long bearing life Commercial labyrinth-style bearing end cover seals Streamlined impeller and volute design flow paths that combine high efficiency and long life Enhanced performance impeller and liner High pressure rating with metal and rubber liners Encapsulated rubber liners for longer life and to prevent liner extrusion or blow-out Large diameter Warman® Hi-Seal® expeller for sealing at high intake pressures Improved ease of maintenance and longer maintenance intervals Applications Mill discharge Process pumps Low pressure tailings Processes Slurry transportation Tailings Management Wet sand pumping
