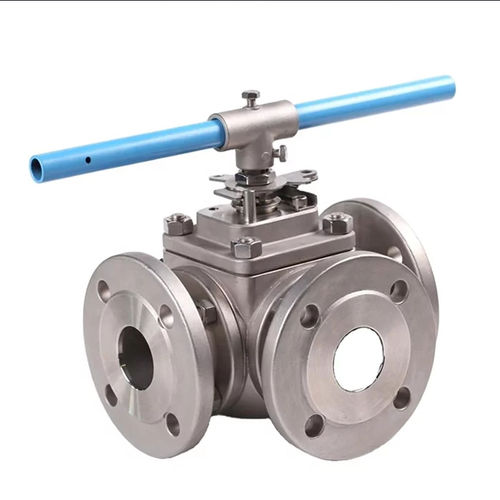

Ball valve leverpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever, pneumatic, electric
- Body
- flange, stainless steel, alloy
- Applications
- for the chemical industry, for pipelines, for oil industry applications, for the gas industry, for marine applications, refinery, power line
- Number of channels
- 3-way
- Other characteristics
- ANSI
- DN
Min.: 50 mm
(1.969 in)Max.: 1,200 mm
(47.244 in)- Pressure
16 bar
(232.1 psi)- Temperature
Min.: -46 °C
(-51 °F)Max.: 550 °C
(1,022 °F)
Description
Design Standard
ANSI B16.1
End Connections
Flange ASME B16.5/B16.47
Features of 3-way ball valves are as follows:
3-WAY BALL VALVE has two kinds of flow passage pattern:Type L(3-way and 2-port) and Type T (3-way and 3-port).The correct option is depended on your application.
RPTFE,PPL or HR seats with dual sealing.
Variety of actuating modes,such as by handle,by worm gear,pneumatic and electric actuator.
