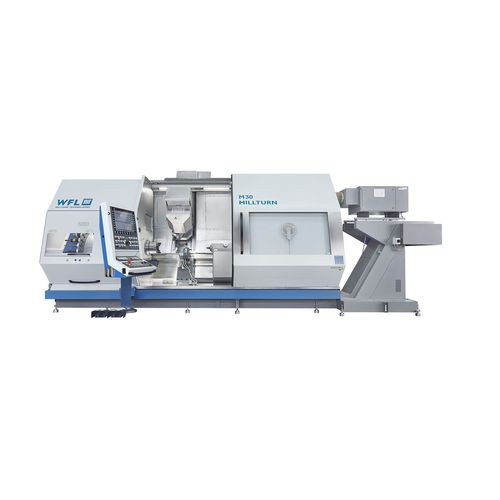

CNC milling-turning center M30 series
horizontal3-axis

CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
Add to favorites
Compare this product

Characteristics

Control type
CNC
Type
horizontal
Number of axes
3-axis
Diameter

520 mm (20.47 in)

X travel

600 mm (24 in)

Y travel

250 mm (10 in)

Description

M30 Nominal center distance mm 2000 Swing - ø over Top slide mm 520 Max. Turning- ø between centers mm 520 Max. power, Turning spindle 40% (100%) duty cycle kW 33(29) Max. torque, Turning spindle 40% (100%) duty cycle Nm 630(550) Max. spindle speed, Turning spindle min-1 4000 Max. power, Miling spindle 40% (100%) duty cycle kW 20(15) Max. torque, Milling spindle 40% (100%) duty cycle Nm 250(190)/165(125)/125(95) Max. spindle speed, Milling spindle min-1 6000/9000/12000 Swiveling angle B - axis degree -110...+110 Travel Y - axis mm 250(-100...+150) Travel X - axis mm 600(-20...+580) Tailstock type Mechatronic Tool magazine number 40/80 Control SIEMENS type SINUMERIK 840D sl M30-G Nominal center distance mm 1800 Swing - ø over Top slide mm 520 Max. Turning- ø between centers mm 520 Max. power, Turning spindle 40% (100%) duty cycle kW 33(29)//33(29) Max. torque, Turning spindle 40% (100%) duty cycle Nm 630(550)//630(550) Max. spindle speed, Turning spindle min-1 4000//4000 Max. power, Miling spindle 40% (100%) duty cycle kW 20(15) Max. torque, Milling spindle 40% (100%) duty cycle Nm 250(190)/165(125)/125(95) Max. spindle speed, Milling spindle min-1 6000/9000/12000 Swiveling angle B - axis degree -110...+110 Travel Y - axis mm 250(-100...+150) Travel X - axis mm 600(-20...+580) Tailstock type - Tool magazine number 40/80 Control SIEMENS type SINUMERIK 840D sl
