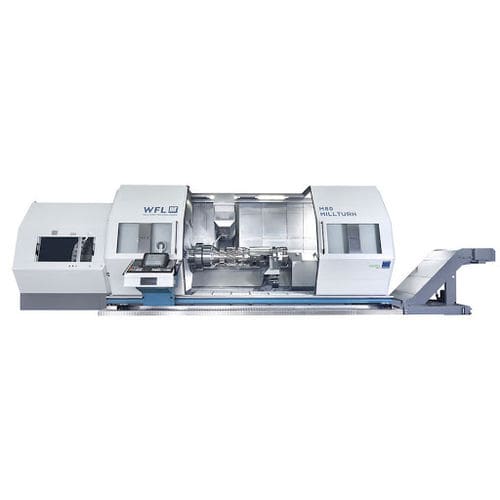

CNC milling-turning center 85 series

horizontal3-axisspindle

An essential feature of the M80 MILLTURN is the enormous variety of configurations possible out of the modular machine concept together with the best size for the individual machine configurations. The machine concept is based on minimized distances of tool and workpiece to the bed and widest possible guideway distances resulting in an optimum situation for rigidity and ideal geometries. All center distances (except 1000 mm) are also available in a counter spindle version and for a further productivity enhancement an additional tool turret can be offered. Due to the innovative machine design the bottom guideways do not require any telescopic covers. Just straight stainless steel sheet metal makes perfect chip flow. The new tool magazine is accessible from the front of the machine and is a compact, stable and truly maintenance-free unit. A highly dynamic tool changer with rack and pinion drive is equipped with linear axes thus avoiding any centrifugal forces caused by rotation so even tools with 35 kg in weight are handled safely and quickly. Highlights at a glance 150 bar coolant pressure Heavy drilling and boring Gear hobbing Workpiece transfer Active B-axis U-Axis The use of driven tools with additional NC drive such as facing heads (D´Andrea) or special boring bars for seat pocket machining (e.g. Cogsdill, ITS) requires an additional NC axis. WFL offers such an axis (U-axis) as an option. Even after the integration of this U-axis, the option of angular machining remains.
