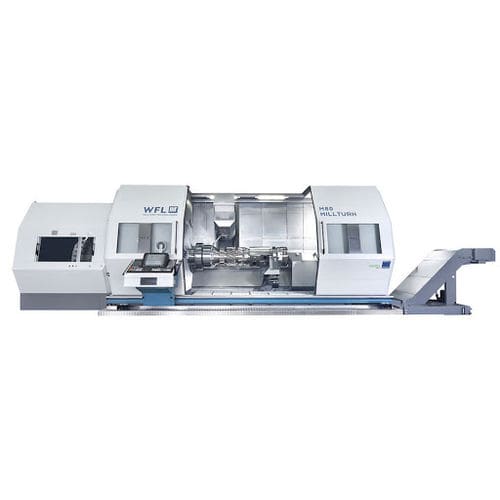

CNC milling-turning center M80X series
horizontal3-axis

CNC milling-turning center
CNC milling-turning center
Add to favorites
Compare this product

Characteristics

Control type
CNC
Type
horizontal
Number of axes
3-axis
Diameter

980 mm, 1,000 mm (38.58 in)

X travel

1,050 mm (41 in)

Y travel

650 mm (26 in)

Description

M80X Nominal center distance mm 1000/2000/3000/4500/6000 Max. Turning- 0 between centers mm -/1000/1000/1000/980 Max. power, Turning spindle 40% (100%) duty cycle kW 56(40)/80(60) Max. torque, Turning spindle 40% (100%) duty cycle Nm 3420(2440)/5860(4500) Max. spindle speed, Turning spindle min'1 2400/1600 Max. power, Miling spindle 40% (100%) duty cycle kW 58(45) Max. torque, Milling spindle 40% (100%) duty cycle Nm 640(500)/400(310) Max. spindle speed, Milling spindle min'1 5000/8000 Swiveling angle B - axis degree 220(-110...+110) Travel Y - axis mm 650(-300...+350) Travel X-axis mm 1050(-20...+ 1030) Tailstock type Mechatronic Tool magazine number 36/72/108/200* Control SIEMENS type SINUMERIK 840D si M80X-G Nominal center distance mm -/2000/3000/4500/6000 Max. Turning- 0 between centers mm -/1000/1000/1000/980 Max. power, Turning spindle 40% (100%) duty cycle kW 56(40)/80(60) // 60(40)/90(60) Max. torque, Turning spindle 40% (100%) duty cycle Nm 3420(2440)/5860(4500) // 3000(2000)/4800(3200) Max. spindle speed, Turning spindle min'1 2400/1600 // 2400/1600 Max. power, Miling spindle 40% (100%) duty cycle kW 58(45) Max. torque, Milling spindle 40% (100%) duty cycle Nm 640(500)/400(310) Max. spindle speed, Milling spindle min'1 5000/8000 Swiveling angle B - axis degree 220(-110...+110) Travel Y - axis mm 650(-300...+350) Travel X-axis mm 1050(-20...+ 1030) Tailstock type - Tool magazine number 36/72/108/200* Control SIEMENS type SINUMERIK 840D si
