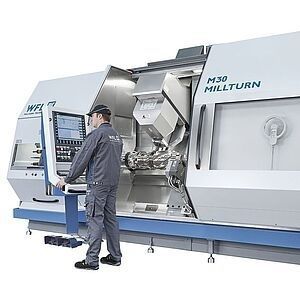

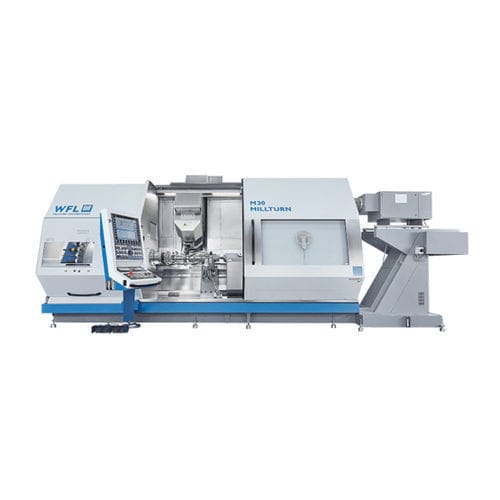

CNC milling-turning center M35-G
horizontal3-axisspindle

CNC milling-turning center
CNC milling-turning center
CNC milling-turning center
Add to favorites
Compare this product

Characteristics

Control type
CNC
Type
horizontal
Number of axes
3-axis
Structure
spindle
Other characteristics
high-precision, high-performance, high-speed, high-productivity
Diameter

520 mm (20.47 in)

X travel

600 mm (24 in)

Y travel

250 mm (10 in)

Description

Nominal centre distancemm1800(1680) Swing - 0 over Top slidemm520 Standard chuck - 0mm250/315/400 // 250/315 Max. power. Turning spindle 40% (100%) duty cyclekW33(29)/54(37) // 33(29)* Max. torque. Turning spindle 40% (100%) duty cycleNm630(550)/(1500)// 630(550)* Max. spindle speed. Turning spindlemin-14000/3300 // 4000* Max. power. Milling spindle 40% (100%) duty cyclekW20(15) Max. torque. Milling spindle 40% (100%) duty cycleNm165(125) Max. spindle speed. Milling spindlemin-16000/9000/12000 Max. pressure of coolant through spindlebar80 Swivelling range B-axisdegree-110/+110 Travel Y-axismm250(-100/+150) Travel X-axismm600(-20/+580) Tool magazinenumber40/80 Control SiemensTypeSINUMERIK 840D
