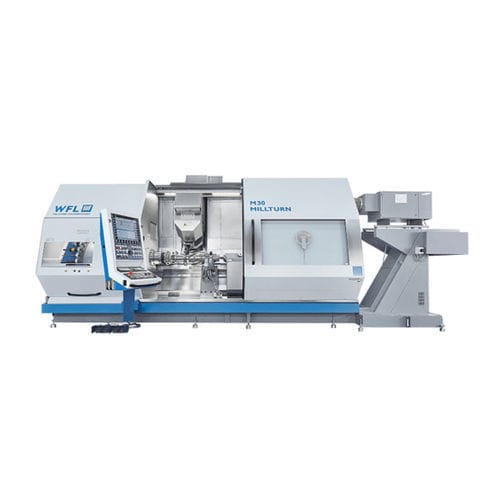

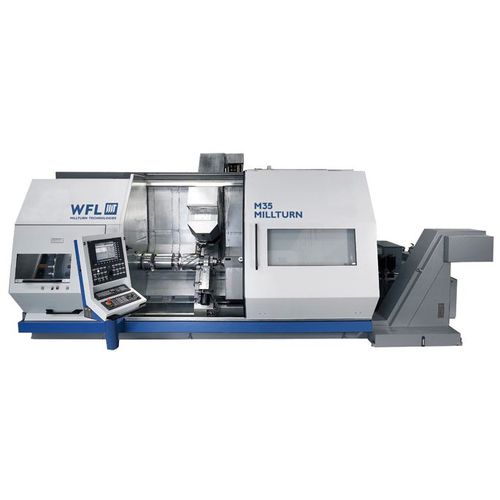

CNC milling-turning center / horizontal / 5-axis / spindle
M35

{{requestButtons}}

Characteristics

  • Control type:

    CNC

  • Type:

    horizontal

  • Number of axes:

    5-axis

  • Structure:

    spindle

  • Other characteristics:

    high-precision, high-performance, high-speed, high-productivity

  • Diameter:

    520 mm

  • X travel:

    600 mm

  • Y travel:

    250 mm

Description

Nominal centre distance mm 2000
Swing - 0 over Top slide mm 520
Max. Turning- 0 between centers mm 520
Standard chuck - 0 mm 250/315/400
Max. power. Turning spindle 40% (100%) duty cycle kw 33(29)/54(37)
Max. torque. Turning spindle 40% (100%) duty cycle Nm 630(550)/(1500)
Max. spindle speed. Turning spindle min-1 4000/3300
Max. power. Milling spindle 40% (100%) duty cycle kW 20(15)
Max. torque. Milling spindle 40% (100%) duty cycle Nm 165(125)
Max. spindle speed. Milling spindle min-1 6000/9000/12000
Max. pressure of coolant through spindle bar 80
Swivelling range B-axis degree -110/+110
Travel Y-axis mm 250(-100/+150)
Travel X-axis mm 600(-20/+580)
Tailstock Type Mechatronik
Steady rest, Max. clamping - 0 mm 350
Tool magazine number. 40/80
Control Siemens Type SINUMERIK 840 D
