Projected capacitive touchscreen monitor W24L100-POA2

multitouch screenindustrial24"

Overview

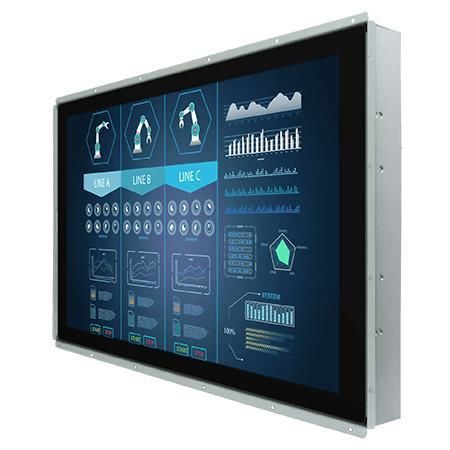

Model W24L100-POA2 is a 24-inch open-frame projected-capacitive multi-touch display designed for kiosk, embedded, commercial and industrial applications. The display integrates a 1920 x 1080 panel, fanless cooling and a metal enclosure to support long-term operation with low power consumption and effective heat dissipation in production environments.

Mounting & Reliability

• Supports rear mounting, VESA mounting and optional panel mount for flexible installation.
• Metal enclosure and industrial-grade components for reliable operation in factory and commercial settings.
• Available configurations and optional accessories to fit different deployment scenarios.

Outstanding Image Quality

• Full HD 1920 x 1080 resolution with 250 nits panel brightness and 3000:1 contrast ratio.
• Wide viewing angles and 16.7M colors for consistent image reproduction across viewing positions.

Display Ports and Customization

• Standard I/O includes 1 x VGA and 1 x USB for touch; HDMI and DVI are optional depending on configuration.
• Customization options: product size, customer logo, panel brightness, glass surface treatment, port configuration and power input.

Key Features

• 24", 1920 x 1080
• Projected Capacitive (PCAP) multi-touch
• VGA and optional HDMI/DVI inputs
• Open-frame with VESA mount
• Fanless design, metal enclosure

Certifications

• CE
• FCC

Technical specifications

• Model: W24L100-POA2
• Display Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250.0 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 615 x 385 x 57 mm
• Mounting: VESA mount; Panel mount (Optional)
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input; 24V DC input (optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
