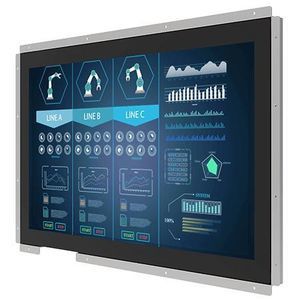

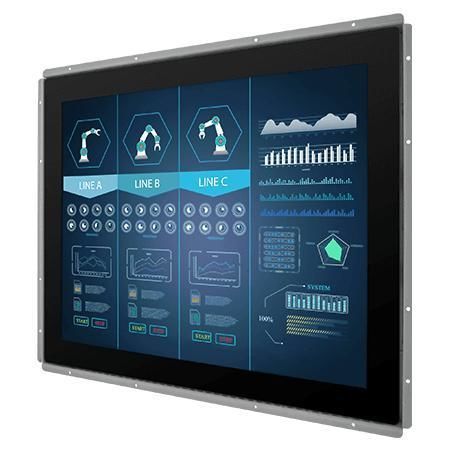

Projected capacitive touchscreen display R19L100-POM1

multitouch screencolor1280 x 1024

Overview
This 19.0 inches projected capacitive multi-touch open-frame display R19L100-POM1 is designed for kiosk, embedded, commercial and industrial applications. It features low power consumption, fanless thermal design and a metal enclosure for reliable long-term operation. Multiple mounting options (panel mount and VESA) and a range of optional interfaces and accessories enable flexible system integration.

Key features

• 19.0 inches, 1280 x 1024 resolution, P-Cap multi-touch
• VGA input; HDMI and DVI available as options
• Panel mount and VESA mount support
• Fanless metal enclosure; 12V DC standard, 24V DC optional

Certifications

• CE
• FCC

Technical specifications

• Display — Size: 19.0 inches; Resolution: 1280 x 1024; Panel Brightness: 250 nits; Contrast Ratio: 1000:1; View Angles: 85,85,80,80; Display Color: 16.7M Colors; Active Area: 376.32 x 301.06 mm
• Touch / Glass — Projected Capacitive Multi Touch Screen; Anti-glare Coating (Optional)
• Environment — Operating Humidity: 10% to 90% RH, Non-Condensing; Operating Temperature: 0°C to 50°C; Storage Temperature: -10°C to 60°C
• Certification — CE, FCC
• IO Ports — USB: 1 x USB for touch; Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio — Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical — Dimensions: 456 x 382 x 53 mm; Weight: 5.6 kg; Mounting: VESA Mount / Panel Mount; Enclosure: Metal; Cooling System: Fanless Design
• Accessory — Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory — Remote Controller (Optional, Varies by product)
• Power — Power Rating: 12V DC input; 24V DC input (optional)
• Control — Buttons: 5 Keys: -, +, Power, Esc, Enter
